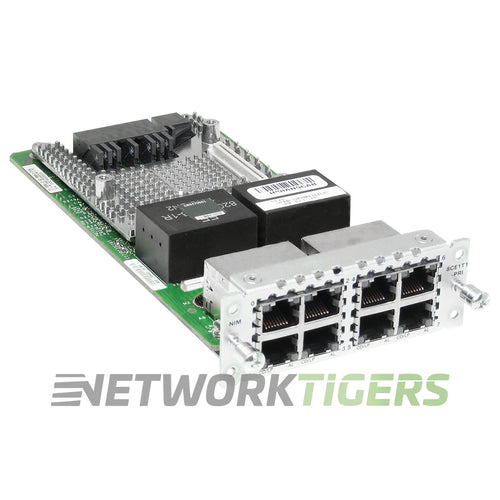

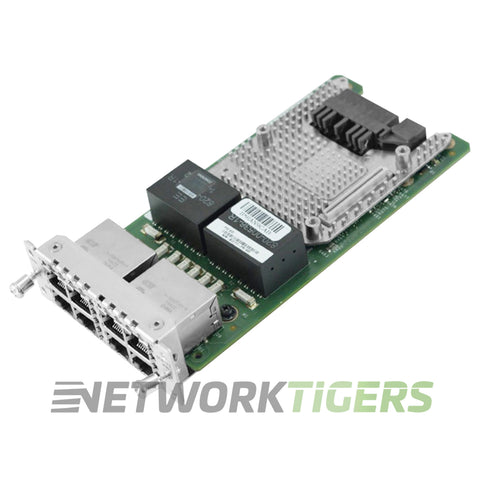

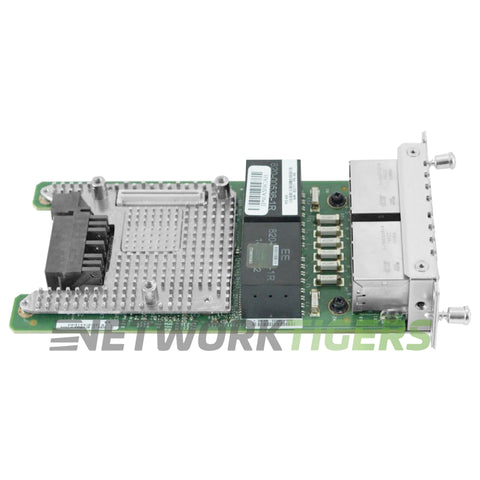

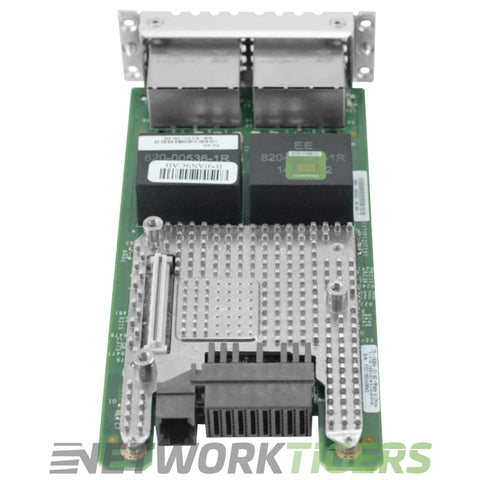

Cisco NIM-8CE1T1-PRI ISR 4000 8x Voice/Channelized Data T1/E1 Router Module

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-5380
UPC: 882658570339

Overview

The Cisco NIM-8CE1T1-PRI is an eight-port channelized T1/E1 and ISDN PRI Network Interface Module for Cisco ISR 4000 Series routers. It adds structured G.703 with G.704 framing and unstructured E1 to the Multiflex Trunk functions, with 24 data channel-groups per port, an integrated DSU/CSU and drop-and-insert.

The card has one PVDM4 slot; voice needs a PVDM4, which also gives echo cancellation up to 128 ms. Data needs the IP Base package and voice at least the Unified Communications (UC) package. It is not supported on the 2900 and 3900 Series.

For voice, add a PVDM4 such as the PVDM4-64 64-channel DSP module. For a single channelized port, see the NIM-1CE1T1-PRI; for eight Multiflex Trunk ports, the NIM-8MFT-T1/E1.

This listing ships one module as listed in Item Includes. This seller refurbished Cisco NIM-8CE1T1-PRI module is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 8x Multi-Flex Trunk Voice/Channelized Data T1/E1
  • Clear-Channel Data : Yes
  • MFT Packet Voice : Yes
  • Unstructured E1 (G.703) Support : Yes
  • Channelized Data : Yes
  • Designed for : ISR 4000 Series
  • Model Number : NIM-8CE1T1-PRI
  • Part Number : NIM-8CE1T1-PRI, NIM-8CE1T1-PRI=, NIM-8CE1T1-PRI-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco NIM-8CE1T1-PRI ISR 4000 8x Voice/Channelized Data T1/E1 Router Module as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
