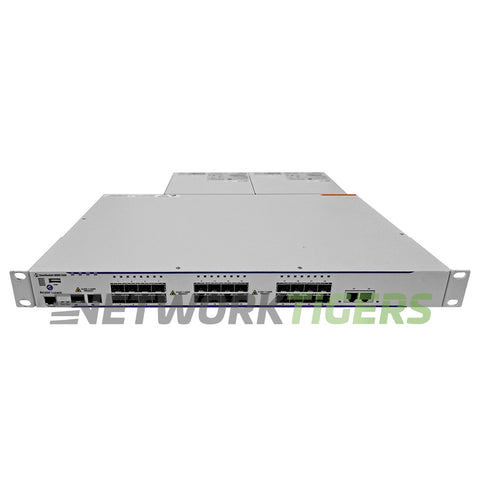

The Alcatel-Lucent OS6850E-U24X is a rack-mountable switch featuring 22x 1 Gigabit SFP ports, 2x 10 Gigabit SFP+ uplink ports, and 2x combo CX-4/stacking interfaces. Manufactured by Alcatel-Lucent, it supports a forwarding rate of up to 95.3 Mpps.
This model supports the optional OS6-XNI-U2 module for two additional SFP+ interfaces via rear stacking cages connected through CX-4 ports; this module is not included. The unit operates on AC power and uses fixed internal cooling fans with front-to-back airflow constraints depending on deployment orientation. All Ethernet port slots are located on the front panel to facilitate standard data center or telecom cabinet installation.
Alcatel Lucent OS6850E-U24X: Gigabit Ethernet L3 fixed configuration chassis in a 1U form factor with 22 SFP GigE ports, 2 combo ports, 2 SFP+ 10GigE ports, and two 10GigE CX-4 ports. The CX-4 ports can be used as stacking ports or as connectors for the OS6-XNI-U2. A 126-W AC or 120-W DC power supply respectively is included in the bundle.
- Network Ports : 22x 1 Gigabit Ethernet SFP, 2x 1 Gigabit Ethernet Combo
- Uplink Ports : 2x 10 Gigabit SFP+, 2x 10 Gigabit CX-4 (The CX-4 ports can be used as stacking ports or as connectors for the OS6-XNI-U2)
- Stacking capacity : 40 Gb/s
- Module Options : OS6-XNI-U2 (Supports 2 SFP+ 10GigE ports. Inserts in the stacking cages and connects to the CX-4 ports at the rear of the OS6850E chassis) - not included
- Power Supplies Included : 2x AC PSU Slots - 1x OS6850E-BP AC PSU's Included
- Power Supply Options : OS6850E-BP-D
- PoE Budget : N/A
- Forwarding Rate : 95.3 Mpps
- Model Number : OS6850E-U24X
- Part Number : OS6850E-U24X
- Condition : New
- One (1) NEW Alcatel Lucent OS6850E-U24X 22x 1GB SFP 2x 10GB SFP+ 2x 10GB Combo Switch as described above
