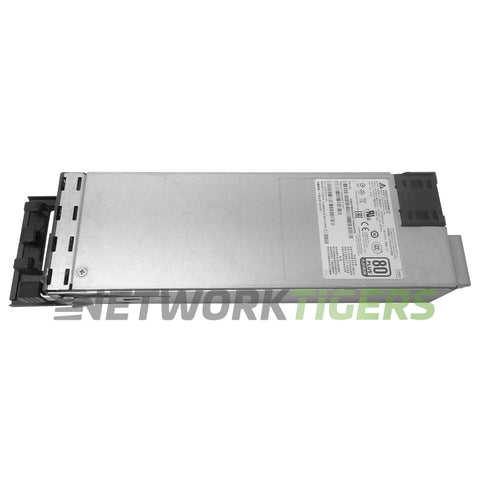

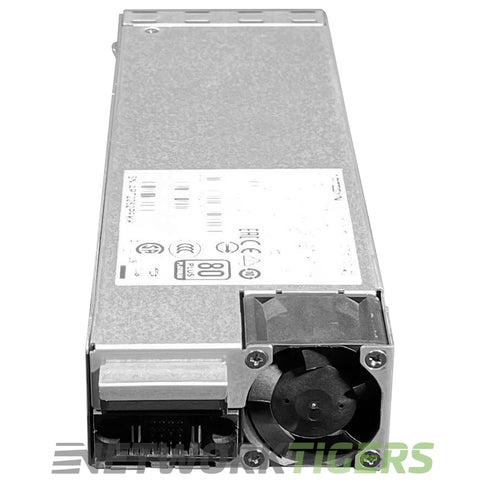

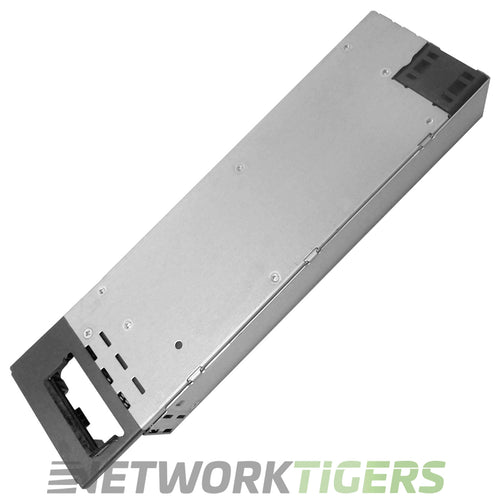

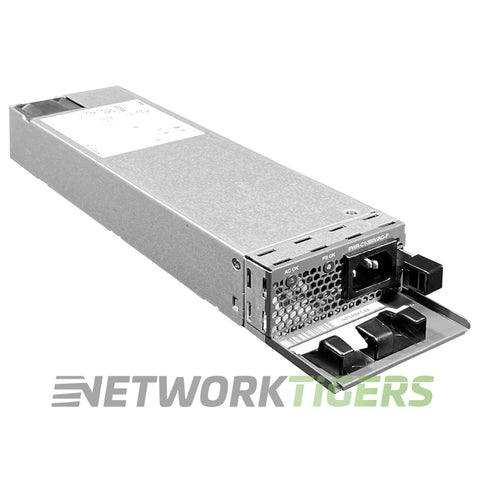

The Cisco PWR-C1-350WAC-P is the Platinum-rated 350 W AC power supply for the Catalyst 9300 Series, including C9300X models. Cisco ships it as the default supply in data-only switches that do not provide PoE, such as the C9300-24T and C9300-48T.
Input is 100 to 240 VAC (autoranging) at 47 to 63 Hz, and output is rated at -56 V at 6.25 A. The supply is hot-swappable, and Cisco supports mixing Platinum-certified and non-certified supplies in the same switch.
This listing ships one power supply.
PoE switches need more power, such as the NEW Cisco PWR-C1-1100WAC-P 1100 W Platinum-rated power supply. A typical host is the NEW Cisco C9300-48T-A 48-port switch.
This Cisco PWR-C1-350WAC-P power supply is new open box and covered by the NetworkTigers one-year warranty.
- Power Capacity : 350 W
- Input Voltage : 100 to 240 VAC
- Output : -56V at 6.25A
- Designed For : Cisco Catalyst 9300 Series Switches (non-PoE, data-only models) - C9300-24T, C9300-48T, C9300L-24T-4G, C9300L-24T-4X, C9300L-48T-4G, C9300L-48T-4X
- Power-supply Input Receptacles : IEC 320-C14 (IEC60320-C14)
- Model Number : PWR-C1-350WAC-P
- Part Number : PWR-C1-350WAC-P, PWR-C1-350WAC-P=, PWR-C1-350WAC-P-WS
- Condition : New
- One (1) New Cisco PWR-C1-350WAC-P Catalyst 9300 Series 350WAC Platinum-Rated Switch Power Supply as described above
