NEW Arista QSFP-100G-CWDM4 100GBASE-CWDM4 1310nm SMF LC QSFP28 Transceiver
New

NEW Arista QSFP-100G-CWDM4 100GBASE-CWDM4 1310nm SMF LC QSFP28 Transceiver

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5677

Overview

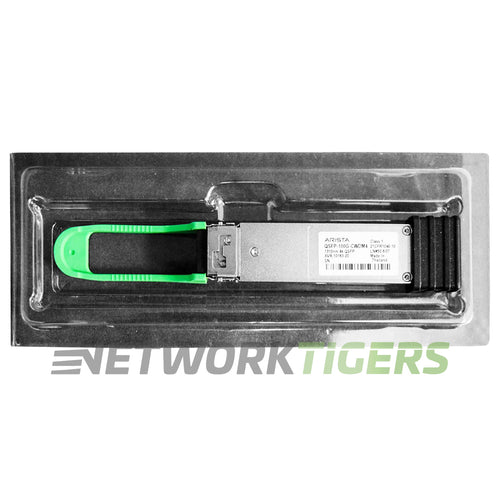

The Arista QSFP-100G-CWDM4 is a QSFP28 100GBASE-CWDM4 optical transceiver for 100G links over duplex single-mode fiber. It transmits at 1271, 1291, 1311, and 1331nm. It reaches up to 2 kilometers and uses a duplex LC connector.

Arista lists it as dual rate, so it also runs at 40G. Use a matching 100GBASE-CWDM4 optic at the far end of the link unless Arista lists the pairing above, and use single-mode patch cables.

If you need a different reach, the QSFP-100G-SR4 100GBASE-SR4 transceiver and the QSFP-100G-SWDM4 100GBASE-SWDM4 transceiver are also available. A seller refurbished QSFP-100G-CWDM4 is also available.

Arista publishes a transceiver compatibility guide that lists which switch platforms and EOS releases support each module, so check it for your switch before you order.

This QSFP-100G-CWDM4 is new and covered by the NetworkTigers one-year warranty. The original packaging may have been opened to inspect the contents.


Specifications

  • Form Factor : QSFP28 optical transceiver
  • Speed : 100 Gbps
  • Wavelength : 1271, 1291, 1311, and 1331nm
  • Cable Type : duplex single-mode fiber
  • Connection Type : duplex LC
  • Cable Distance : 2 kilometers
  • Digital Optical Monitoring : Yes
  • Designed for : Arista switches with QSFP28 100GB ports
  • Model Number : QSFP-100G-CWDM4
  • Part Number : QSFP-100G-CWDM4
  • Condition : New


Included

  • One (1) NEW Arista QSFP-100G-CWDM4 100GB BASE-CWDM4 SMF Optical QSFP28 Transceiver as described above
