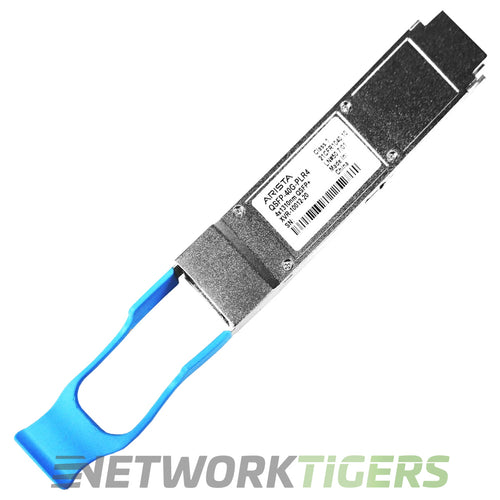

The Arista QSFP-40G-PLR4 is a 40GBASE-PLR4 QSFP+ transceiver for 40GB links of up to 10 kilometers over parallel single-mode fiber. It transmits at 1310nm on four lanes and terminates on an MPO-12 APC (MTP-12) connector, so it needs angled-polish MPO single-mode cabling.
Its main use is breakout: Arista lists optical interoperability with four 10GB LR optics up to 10 kilometers and four LRL optics up to 1 kilometer, so one 40GB port can serve four 10GB single-mode links. Arista rates its maximum power at 3.5W. Check Arista's Transceiver and Cable Guide for supported switch platforms.
For the 10GB ends of a breakout, the SFP-10G-LR 10GBASE-LR transceiver and the SFP-10G-LRL 10GBASE-LRL transceiver are listed, and a new open-box QSFP-40G-PLR4 is also available.
This listing ships one seller refurbished module; manuals and software media are not included. This seller refurbished Arista 40GBASE-PLR4 QSFP+ transceiver is covered by the NetworkTigers one-year warranty.
- Form Factor : QSFP+ optical transceiver
- Speed : 40GB
- Wavelength : 1310nm
- Cable Type : parallel single-mode fiber
- Connection Type : MPO-12 APC
- Cable Distance : 10 kilometers
- Model Number : QSFP-40G-PLR4
- Part Number : QSFP-40G-PLR4
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista QSFP-40G-PLR4 40GB BASE-PLR4 1310nm SMF MTP-12 QSFP+ Transceiver as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
