The HPE Aruba R3V39A AP-503H (US) delivers high-speed connectivity with its dual-radio 802.11ax WiFi 6 technology and a maximum data rate of up to 1,201 Mbps. It operates on both the 2.4 GHz and 5 GHz frequency bands for flexible wireless deployment options.
Featuring two internal semi-directional antennas, it offers peak single antenna gains of 2.5 dBi in the 2.4GHz band and an enhanced gain of up to 5.6 dBi on the faster-performing 5GHz spectrum, ensuring reliable signal strength across various usage scenarios within its regulatory domain compliance for U.S markets (TAA certified).

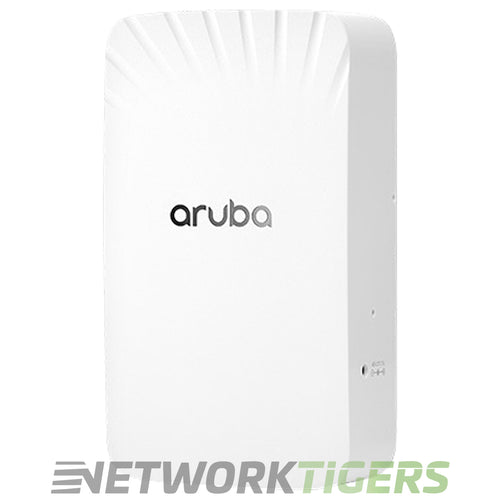

HPE Aruba R3V39A AP-503H (US) Dual-Radio 802.11ax WiFi 6 2x2 MIMO (TAA) WAP
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Central, Mobility Controller, or standalone
- TAA : Yes
- Suggested Use : Mid-range hospitality, branch, and teleworker deployments
- Region : US TAA
- Radios : Dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
- Spatial Streams per Radio : 2 (2SS) on both bands
- Maximum Data Rate : Up to 1.5 Gbps wireless aggregate, 1.2 Gbps (5GHz HE80) and 287 Mbps (2.4GHz HE20) per radio
- Bluetooth / IoT Radios : Bluetooth 5 (BLE5.0) and Zigbee (802.15.4), integrated semi-directional antenna, peak gain 2.5 dBi
- PoE Standard : 802.3af (class 3) on uplink port E0
- DC Power Input : 12Vdc (nominal, +/- 5%), 2.1mm/5.5mm center-positive circular plug
- Uplink Ports : E0 Ethernet port (10/100/1000BASE-T)
- Other Ports : E1-E2 two local Ethernet ports (10/100/1000BASE-T), serial console (proprietary micro-B USB)
- Antenna Type : Integrated, semi-directional
- Mounting Options : Sold Separately - R3V38A Mount Kits - R3V58A (Single-gang Wall-box), R3V61A (Dual-gang Wall-box, AP-503H), R3V60A (Desk Mount)
- Mounts Included : None in box (AP-503H does not ship with any mounting brackets) - optional desk stand available separately, or bundled in the R7G97A Remote AP bundle
- Model Number : R3V39A
- Part Number : R3V39A, AP-503H, AP-503H-TAA, APINH503
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-503H R3V39A US TAA Wi-Fi 6 802.11ax Internal Ant Hospitality WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
