HPE Aruba R4H18A AP-575 (US) is a dual-radio 802.11ax wireless access point with integrated omni-directional antennas. It operates on 2.4 GHz and 5 GHz bands and supports data rates from 8.6 Mbps up to 4803 Mbps on 5 GHz (MCS0–MCS11, NSS 1–4, HE20–HE160). The unit is designed for indoor deployment under the US regulatory domain.
The AP-575 supports Wi‑Fi 6 features for high-density client connectivity and is compatible with Aruba controller-based and controllerless deployments. It uses Power over Ethernet for power delivery and includes Ethernet uplink ports for wired connectivity. The enclosure supports standard mounting options for wall or ceiling installation.

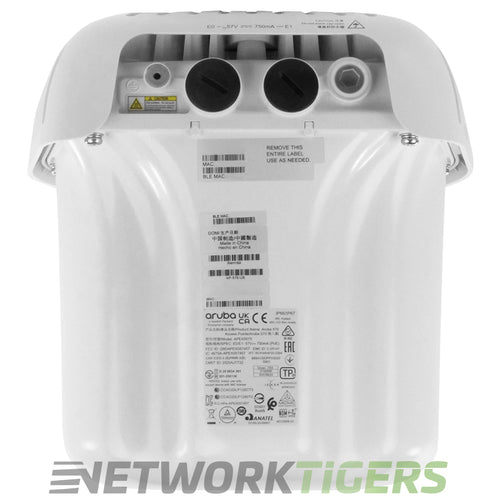

HPE Aruba Networking AP-575 (US): 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Central, Mobility Controller, or Instant (standalone)
- Suggested Use : Outdoor Deployment
- Region : US
- Radios : Dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
- Spatial Streams per Radio : 4 (5 GHz), 2 (2.4 GHz)
- Maximum Data Rate : Up to 4.8 Gbps (5 GHz HE160, max), 574 Mbps (2.4 GHz HE40, max)
- Bluetooth / IoT Radios : Bluetooth 5 and 802.15.4 (Zigbee), integrated omni antenna, peak gain 6 dBi
- PoE Standard : PoE 802.3at/bt (Class 4 or higher)
- Uplink Ports : 2x Ethernet Ports (1x HPE SmartRate PoE-PD RJ-45, 1x 1 Gigabit Ethernet PoE-PD RJ-45)
- Other Ports : USB-C console interface, 1x Reset Button
- Antenna Type : Internal Omnidirectional antennas
- Mounting Options : AP-OUT-MNT-V1A (Pole/Wall Long), AP-270-MNT-V2 (Pole/Wall Short), AP-270-MNT-H1 (Hanging/Tilt), AP-270-MNT-H2 (Flush Wall/Ceiling), AP-270-MNT-H3 (Hanging/Dual-Tilt)
- Mounts Included : None Included
- Model Number : R4H18A
- Part Number : R4H18A, AP-575, AP-575-US, APEX0575
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-575 R4H18A (US) Wi-Fi 6 802.11ax Internal Omni Antenna Outdoor WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Rack Mount Brackets Not Included
- Wall Mount Bracket Not Included
- Power Injector Not Included
- Antennas Not Included
