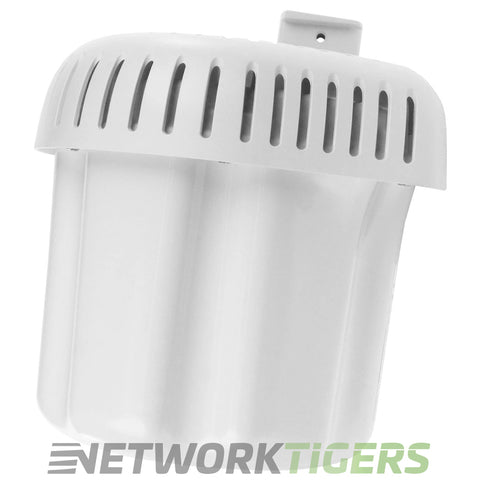

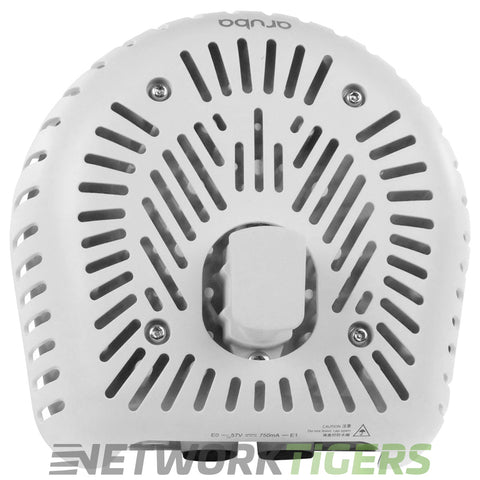

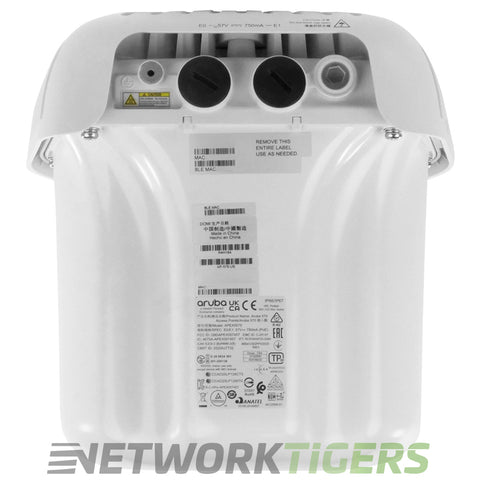

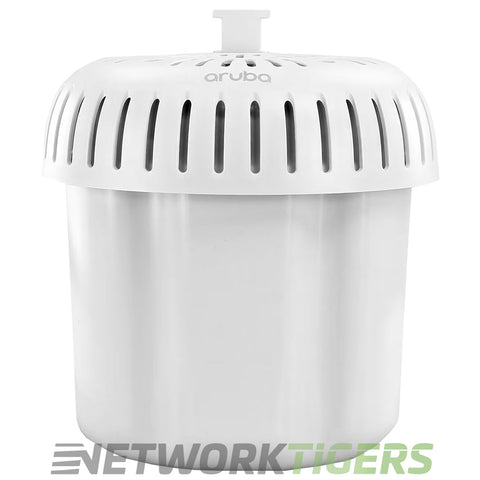

The HPE Aruba R4H18A AP-575 (US) is a wireless access point with an integrated omni-directional antenna array and dual radios for 2.4 GHz and 5 GHz operation. It supports IEEE 802.11ax with 5 GHz data rates from 8.6 Mbps to 4803 Mbps (MCS0 to MCS11, NSS 1 to 4, HE20 to HE160) and operates in the US regulatory domain.
The AP-575 is designed for Wi‑Fi 6 deployments requiring high client density and multi-gigabit wireless throughput. Dual-band operation enables concurrent 2.4 GHz and 5 GHz coverage for legacy and Wi‑Fi 6 devices. The integrated antenna design supports indoor or sheltered outdoor mounting where omni-directional coverage is required. It is suitable for distributed access architectures managed by compatible Aruba controllers or cloud-based management platforms.
HPE Aruba Networking AP-575 (US): 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Omni Antenna Outdoor AP
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Central, Mobility Controller, or Instant (standalone)
- Suggested Use : Outdoor Deployment
- Region : US
- Radios : Dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
- Spatial Streams per Radio : 4 (5 GHz), 2 (2.4 GHz)
- Maximum Data Rate : Up to 4.8 Gbps (5 GHz HE160, max), 574 Mbps (2.4 GHz HE40, max)
- Bluetooth / IoT Radios : Bluetooth 5 and 802.15.4 (Zigbee), integrated omni antenna, peak gain 6 dBi
- PoE Standard : PoE 802.3at/bt (Class 4 or higher)
- Uplink Ports : 2x Ethernet Ports (1x HPE SmartRate PoE-PD RJ-45, 1x 1 Gigabit Ethernet PoE-PD RJ-45)
- Other Ports : USB-C console interface, 1x Reset Button
- Antenna Type : Internal Omnidirectional antennas
- Mounting Options : AP-OUT-MNT-V1A (Pole/Wall Long), AP-270-MNT-V2 (Pole/Wall Short), AP-270-MNT-H1 (Hanging/Tilt), AP-270-MNT-H2 (Flush Wall/Ceiling), AP-270-MNT-H3 (Hanging/Dual-Tilt)
- Mounts Included : None Included
- Model Number : R4H18A
- Part Number : R4H18A, AP-575, AP-575-US, APEX0575
- Condition : New
- One (1) NEW HPE Aruba AP-575 R4H18A (US) Wi-Fi 6 802.11ax Internal Omni Ant Outdoor WAP as described above
