The HPE Aruba R4H23A AP-577 (US) is an outdoor wireless access point supporting 802.11ax with dual radio operation in 2.4 GHz and 5 GHz bands. It provides 2x2:2 and 4x4:4 MIMO configurations with a maximum data rate defined by Wi‑Fi 6 standards. The unit is designed for outdoor deployment.
This access point supports Wi‑Fi 6 features such as OFDMA and MU‑MIMO for multi‑client connectivity. It includes wired Ethernet ports for network uplink and Power over Ethernet (PoE) input, reducing the need for separate power cabling. The enclosure is weather‑resistant for outdoor installations such as campuses, industrial sites, and public venues. The AP-577 can be managed through Aruba controller‑based or cloud‑managed platforms, depending on deployment requirements. Mounting options support wall or pole installation to accommodate varied site layouts.

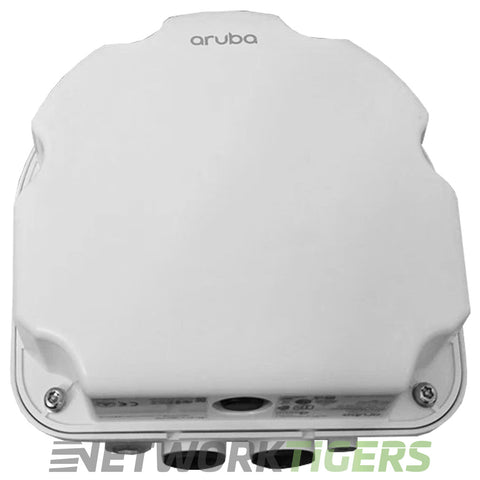

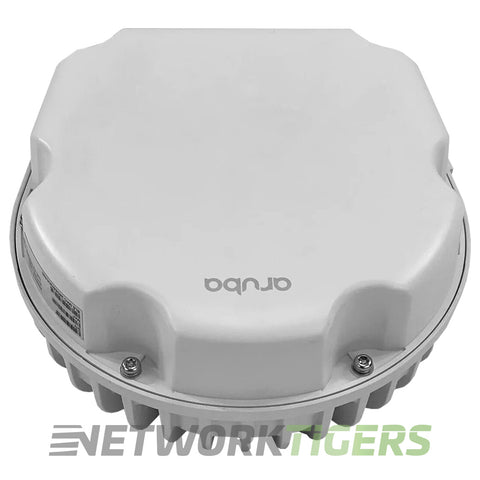

HPE Aruba Networking AP-577 (US) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Directional Antenna Outdoor AP.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : HPE Aruba Networking Central (cloud) or on-premises Mobility Conductor/Controller, standalone or gateway-managed
- Regulatory Model Number : APEX0577
- Suggested Use : Harsh outdoor environments, dense mobile and IoT deployments needing high capacity and range, directional coverage applications like point-to-area or long corridor/pathway coverage
- Region : US
- Radios : Dual radio, software-configurable, 1x 5 GHz radio Radio 0 4x4 MIMO plus 1x 2.4 GHz radio Radio 1 2x2 MIMO, plus integrated Bluetooth 5/802.15.4 Zigbee radio
- Spatial Streams per Radio : 4x4 on 5 GHz, 2x2 on 2.4 GHz
- Maximum Data Rate : Up to 4.8 Gbps single-client peak on 5 GHz 4SS HE160, up to 574 Mbps peak on 2.4 GHz 2SS HE40, up to 3 Gbps aggregate on-air typical HE80/HE40
- Bluetooth / IoT Radios : Integrated Bluetooth 5 and 802.15.4 Zigbee radio, up to 8 dBm transmit power
- PoE Standard : 802.3at/bt Class 4 or higher on E0 and E1, single or dual 802.3af Class 3 or lower not supported - PoE Injector is not included
- DC Power Input : N/A - PoE Only
- Uplink Ports : 1x HPE SmartRate port 100/1000/2500BASE-T RJ-45, 1x 100/1000BASE-T port RJ-45, link aggregation LACP supported between both ports
- Other Ports : 1x USB-C console interface
- Antenna Type : Internal directional antennas
- Mounting Options : Optional kits AP-OUT-MNT-V1A Pole/Wall Long Mount, AP-270-MNT-V2 Pole/Wall Short Mount, AP-270-MNT-H1 Hanging or Tilt Install, AP-270-MNT-H2 Flush Wall or Ceiling, AP-270-MNT-H3 Hanging or Dual-Tilt Install
- Mounts Included : None
- Model Number : R4H23A
- Part Number : R4H23A, AP-577, AP-577-US, APEX0577
- Condition : New
- One (1) NEW HPE Aruba AP-577 R4H23A (US) Wi-Fi 6 802.11ax Internal Antenna Outdoor WAP as described above
