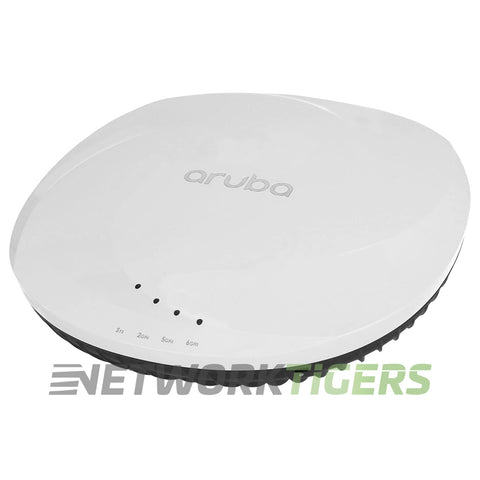

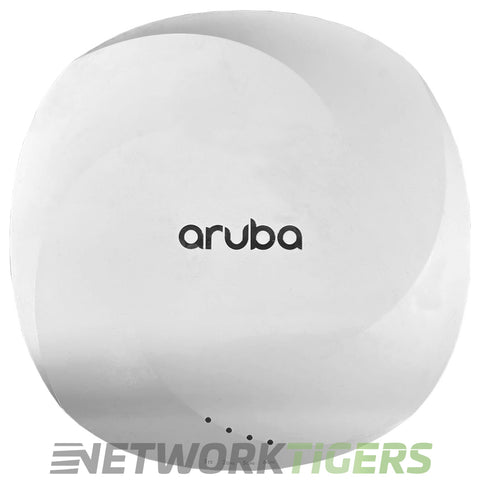

The HPE Aruba R7J39A AP-655 (US) is a tri-radio wireless access point from Hewlett Packard Enterprise. It features an internal antenna, Wi-Fi 6E (IEEE 802.11ax) standard, and supports transmission across the 2.4 GHz, 5 GHz, and newly available 6 GHz bands with a maximum data rate of up to 4.8 Gbps on the 6 GHz band.
Designed for campus deployments within the US regulatory domain, this unit offers integrated mounting options suitable for ceilings or walls. The device can be powered via Power over Ethernet (PoE), eliminating dedicated AC power requirements when connected to compatible switches or injectors supporting IEEE standards like PoE+. Its interface includes multigigabit Ethernet connectivity for high-throughput applications across dense client environments where multiple radios are in operation concurrently per frequency band used by modern networks.
HPE Aruba R7J39A: AP-655 (US) Tri Radio 4x4 802.11ax Wi-Fi 6E Internal Antennas Campus.
- Wi-Fi Standard : Wi-Fi 6E (802.11ax with 6 GHz)
- Managed By : On-premises, Public Cloud, Virtual Private Cloud (VPC) as a Service
- Suggested Use : High-Density Campus and Indoor Environments, Bandwidth-Hungry Video, IoT Devices, Cloud Services
- Region : US
- Radios : 1x 2.4 GHz Radio (4x4 MIMO), 1x 5 GHz Radio (4x4 MIMO), 1x 6 GHz Radio (4x4 MIMO)
- 4x4 : 4 MIMO on Each Radio
- Maximum Data Rate : Up to 7.8 Gbps Maximum Peak Aggregate Data Rate, with Bandwidths of 20/40 MHz at 2.4 GHz, 20/40/80/80+80 MHz at 5 GHz, and 20/40/80/160 MHz at 6 GHz
- Bluetooth / IoT Radios : 1x Bluetooth Low Energy (BLE 5.0) and Zigbee (802.15.4) Radio
- PoE Standard : 802.3at PoE+ or 802.3bt PoE++ (via Compatible Switch or Injector)
- DC Power Input : US

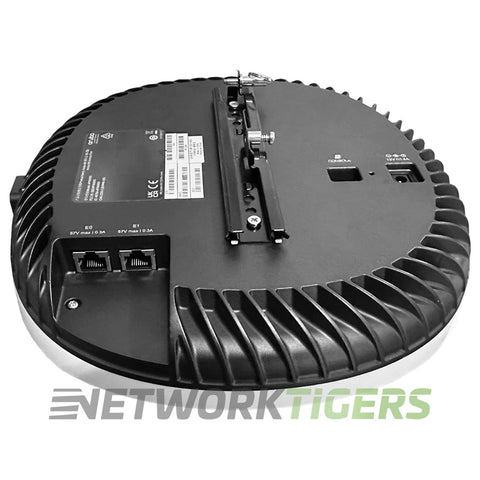

- Uplink Ports : 2x 5 Gigabit PoE+ RJ-45
- Other Ports : 1x USB
- Antenna Type : Integrated Downtilt Omnidirectional Antennas for 4x4 MIMO, Optimized for Horizontal Ceiling Mounted Orientation, Downtilt Angle Roughly 30 to 40 Degrees
- Antenna Ports : N/A - Internal

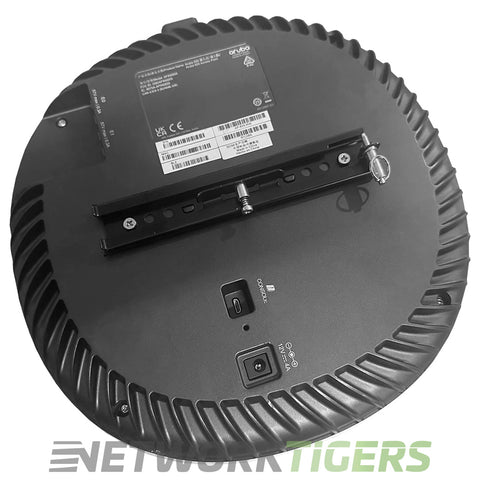

- Mounts Included : A mounting bracket has been preinstalled on the back of the access point
- Model Number : R7J39A
- Part Number : R7J39A, AP-655, AP-655-US, AP-655 US, APIN0655
- Condition : New
- One (1) NEW HPE Aruba AP-655 R7J39A US Wi-Fi 6E 802.11ax Internal Antenna Campus WAP as described above
