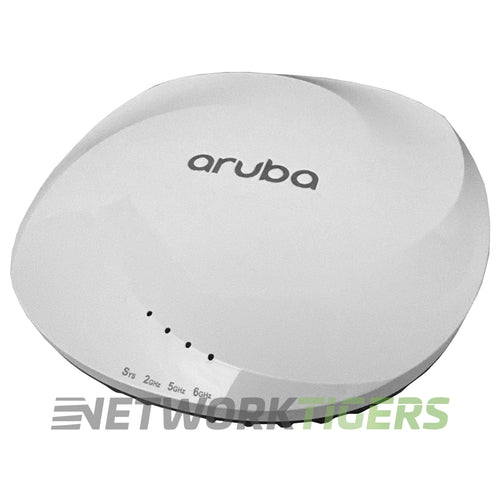

Aruba HPE R7J50A AP-615 (US) wireless access point with internal antennas. Dual radio tri band 2 x 2 Wi Fi 6E unit operating on 2.4 GHz, 5 GHz, and 6 GHz bands. Supports IEEE 802.11ax data rates up to 2,402 Mbps on 6 GHz using HE20 to HE160 channels with MCS0 to MCS11 and one to two spatial streams.
The AP-615 operates under the US regulatory domain and supports Wi Fi 6E client devices across the 2.4 GHz, 5 GHz, and 6 GHz spectrum. The unit uses internal antennas and is designed for indoor wireless coverage in managed access point deployments that require tri band 802.11ax connectivity for compatible wireless devices.
HPE R7J50A: HPE Aruba Networking AP-615-US Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antennas Campus AP.
- Interface Ports : 1x 2.5 Gigabit Ethernet RJ-45 (100/1000/2500BASE-T) - POE-PD - 48Vdc (nominal) 802.3af/at POE
- Management Ports : 1x USB 2.0 host interface (Type A connector)
- Antenna Ports : Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8dBi in 2.4GHz, 4.5dBi in 5GHz and 4.5dBi in 6GHz
- Power Options : DC power interface - 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length. Or Power over Ethernet (POE) on port E0 - Power sources are sold separately
- Frequency : 2.4 GHz, 5 GHz, 6 GHz
- 802.11ax (6GHz) : - 3.6 to 2,402 Mbps (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
- Regulatory domain : US
- Mounts : A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately)
- Model Number : R7J50A
- Part Number : R7J50A
- Condition : Used
- One (1) Seller refurbished HPE Aruba R7J50A AP-615 (US) Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antenna WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Bracket Not Included
