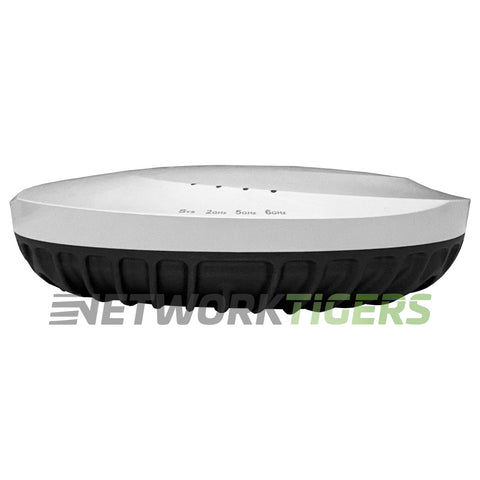

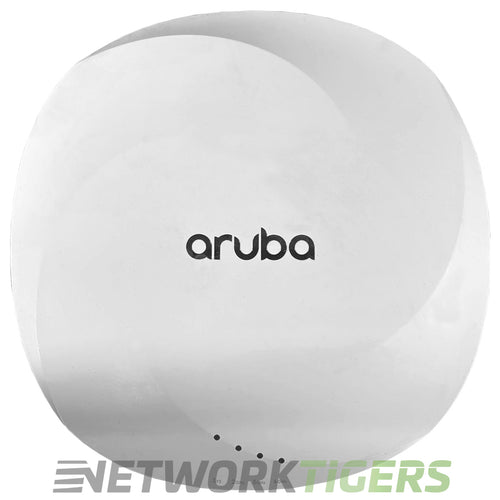

HPE Aruba R7J55A AP-615 (US) wireless access point, dual radio tri band 2x2 Wi-Fi 6E unit with internal antennas. Supports 2.4 GHz, 5 GHz, and 6 GHz bands with 802.11ax data rates from 3.6 Mbps to 2,402 Mbps using HE20 to HE160 channels.
The unit operates under the US regulatory domain (TAA) and is suited for indoor deployments requiring tri band coverage. It supports standard Ethernet connectivity for data and power, with Power over Ethernet as the primary power source. The compact enclosure supports wall or ceiling mounting for distributed wireless coverage.
HPE Aruba R7J55A: HPE Aruba Networking AP-615-US Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antennas TAA Campus AP.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6E)
- Managed By : HPE Aruba Networking Central (cloud) or on-premises Mobility Conductor/Controller, standalone or gateway-managed
- Suggested Use : Indoor campus deployments needing tri-band coverage, high client/IoT density, bandwidth-hungry video and AR/VR applications
- Region : US (TAA)
- Radios : Two physical radios total, each 2x2 MIMO, tunable to any two of three bands, configurable as 1x 2.4 GHz + 1x 5 GHz, or 1x 5 GHz + 1x 6 GHz, or 1x 2.4 GHz + 1x 6 GHz
- Spatial Streams per Radio : 2x2 MIMO (2 spatial streams) on each radio
- Maximum Data Rate : Up to 3.6 Gbps combined peak (2.4 GHz up to 574 Mbps, 5 GHz up to 1.2 Gbps, 6 GHz up to 2.4 Gbps)
- Bluetooth / IoT Radios : Bluetooth Low Energy 5.0 and Zigbee 802.15.4 radio, integrated
- PoE Standard : 802.3af/at (class 3 or higher) on the E0 port - PoE Injector not included
- DC Power Input : 12Vdc nominal (+/- 5%), 2.1mm/5.5mm center-positive circular plug, 9.5mm length - DC Adapter not included

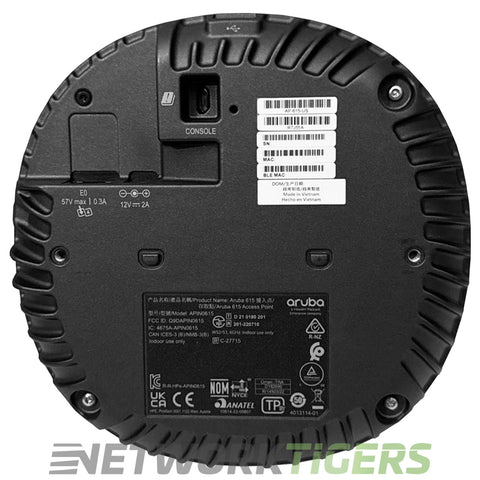

- Uplink Ports : 1x E0 2.5 Gbps Smart Rate Ethernet port (100/1000/2500BASE-T), auto-sensing, MDI/MDX

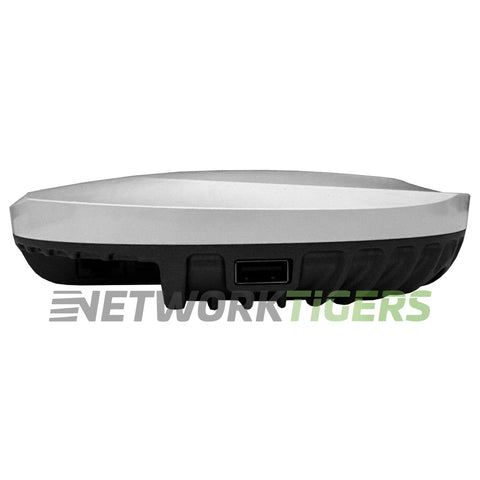

- Other Ports : USB 2.0 Type A host port, proprietary micro-USB serial console port
- Antenna Type : Internal, integrated downtilt omnidirectional antennas
- Antenna Ports : None, this is an internal-antenna model with no external antenna connectors
- Mounting Options : AP-MNT-A (R3J15A), AP-MNT-B (R3J16A), AP-MNT-C (R3J17A), AP-MNT-D (R3J18A), AP-MNT-E (R3J19A), AP-MNT-U (S4K79A). Mount not included, order separately.
- Mounts Included : None, a mounting bracket is pre-installed on the AP itself, but the actual mount kit must be purchased separately
- Model Number : R7J55A
- Part Number : R7J55A, AP-615, AP-615-TAA, APIN0615
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-615 R7J55A US TAA Wi-Fi 6E 802.11ax Internal Antenna Campus WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Bracket Not Included
