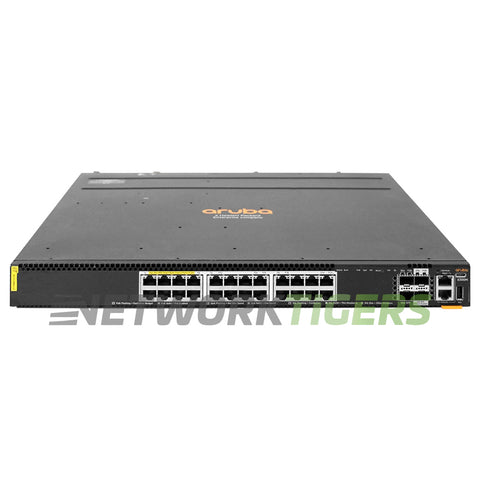

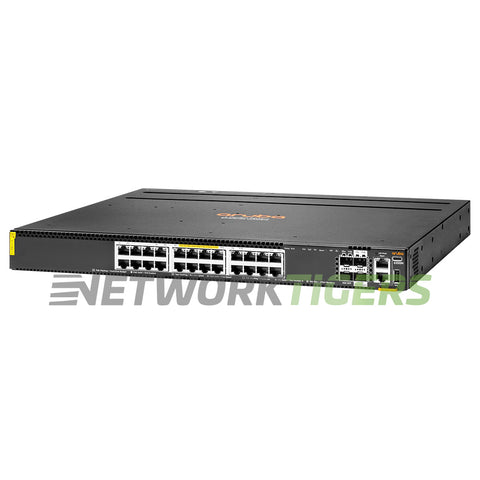

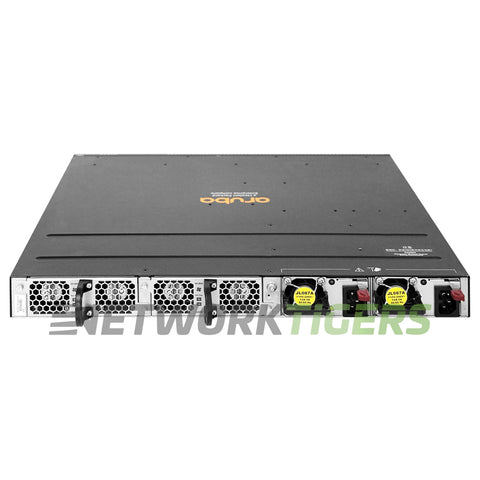

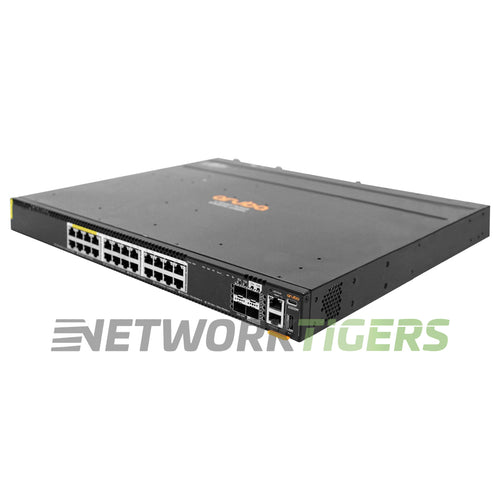

HPE Aruba R8S89A is a fixed-configuration network switch from Hewlett Packard Enterprise featuring 24 x 10GbE Class 6 PoE RJ45 ports, 2 x 25Gb SFP28 ports, and 2 x 50Gb SFP56 ports. It supports switching capacity up to 880 Gbps and forwarding rates up to 660 Mpps.
The switch provides a 16 MB packet buffer and a MAC address table size of 32,768 entries. Measured latency is 4.24 µs at 1Gbps, 1.50 µs at 10Gbps, 2.91 µs at 25Gbps, and 3.49 µs at 50Gbps. The 24 PoE-enabled 10GbE ports support high-power devices such as wireless access points, IP cameras, and VoIP phones. The integrated 25Gb and 50Gb uplink ports support high-speed aggregation or core connectivity. Module slots allow expansion or uplink flexibility where supported. The switch is suited for high-density access deployments requiring multi-gigabit copper connectivity with high-speed fiber uplinks.
HPE Aruba Networking 6300M 24p HPE Smart Rate 1G/2.5G/5G/10G Class6 PoE and 2p 50G and 2p 25G Switch.
- Network Ports : 24x SmartRate 100M/1G/2.5G/5G/10 Gigabit Ethernet BaseT Class 6 PoE ports supporting up to 60W per port (MACsec)
- Uplink Ports : 2x 10G/25G/50 Gigabit Ethernet SFP56, 2x 25 Gigabit Ethernet SFP28 ports (MACsec)
- Management Ports : 1x USB-C Console Port, 1x RJ Console Port, 1x OOBM port, 1x USB Type A Host port
- Stacking Ports : 50GB Ports can be used for stacking - stacking Bandwidth = 200 Gbps
- Stack Size : 10 members
- CPU : Quad Core ARM Cortex A72 @ 1.8GHz
- Packet Buffer : 16 MB
- Fan Module Options : 2x Fan Tray Slots - 2x Fan Trays Included - Each fan tray contains two fans
- Power Supplies Included : 2x PSU Slots - 1 minimum power supply required (ordered separately)
- Power Supply Options : JL086A, JL087A, JL670A, JL758A - none included
- PoE Budget : 2880W (Max)
- Switching Capacity : 880 Gbps
- Forwarding Rate : 660 Mpps
- MAC Address Table Size : 32,768
- Latency : 1Gbps =4.24ųSec, 10Gbps = 1.50ųSec, 25Gbps = 2.91ųSec, 50Gbps = 3.49ųSec
- DRAM and Flash : 8 GB DDR4 32 GB eMMC
- Model Number : R8S89A
- Part Number : R8S89A
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba R8S89A 24x 10GB Class 6 PoE RJ45 2x 50GB SFP56 2x 25GB SFP28 Switch as described above
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Power Supplies Not Included
- Power Cord Not Included
