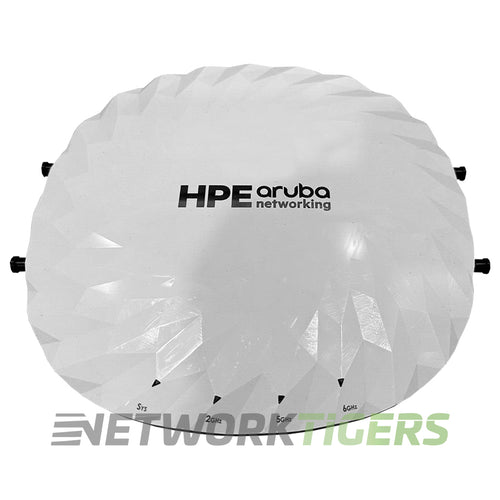

HPE Aruba S1G33A AP‑734 (US) by Hewlett Packard Enterprise is a tri‑radio 2x2:2 Wi‑Fi 7 wireless access point with external antenna connectors. It operates on 2.4 GHz, 5 GHz, and 6 GHz bands and supports data rates up to 5.8 Gbps on 6 GHz. The unit is designed for US regulatory domain compliance.
The AP‑734 supports IEEE Wi‑Fi 7 standards and is intended for deployments requiring multi‑band coverage with external antennas for customized RF design. The tri‑radio architecture enables concurrent operation across three frequency bands for client access and spectrum management. It is suitable for ceiling or wall mounting, depending on antenna selection and site layout.
HPE Aruba Networking AP‑734 (US) Tri‑radio 2x2:2 Wi‑Fi 7 External Antennas Campus AP.
- Wi-Fi Standard : Wi-Fi 7 (802.11be)
- Managed By : HPE Aruba Networking Central
- Suggested Use : High-Density Campus and Indoor Environments (Enterprise, Healthcare, Education, Retail)
- Region : US
- Radios : 1x 2.4 GHz Radio (2x2 MIMO, up to 688 Mbps), 1x 5 GHz Radio (2x2 MIMO, up to 2.9 Gbps), 1x 6 GHz Radio (2x2 MIMO, up to 5.8 Gbps)
- Spatial Streams per Radio : 2x2 MIMO (2 Spatial Streams per Radio)
- Maximum Data Rate : Up to 688 Mbps at 2.4 GHz, 2.9 Gbps at 5 GHz, and 5.8 Gbps at 6 GHz, 9.3 Gbps Maximum Tri-Band Aggregate
- Bluetooth / IoT Radios : 1x BLE 5.4 Radio (w/HADM), 1x BLE 5.4 or 802.15.4/Zigbee Radio (Selectable)
- PoE Standard : 802.3at/bt PoE Class 4 or Higher, 802.3az Energy Efficient Ethernet
- DC Power Input : DC power interface - accepts 2.1 mm/5.5 mm center‑positive circular plug with 9.5 mm length
- Uplink Ports : 2x 1 Gigabit Ethernet 802.3at/bt PoE RJ-45
- Other Ports : 2x USB 2.0 host interface (Type A connector)
- Antenna Type : External Tri-Band Dipole, Omni, or Directional Panel (Sold Separately)

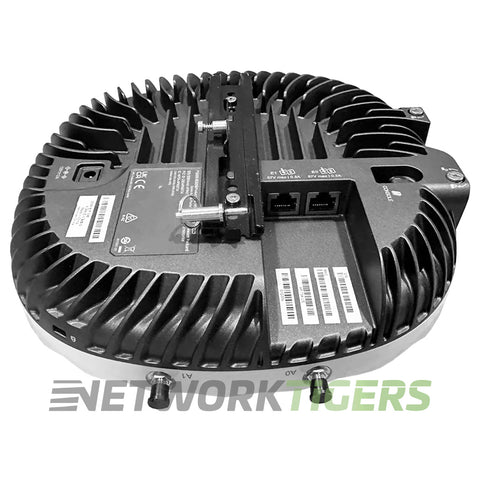

- Antenna Ports : Two sets of two female RP-SMA connectors for external antennas, A0 and A1 for the 2.4 GHz and 5 GHz radios, and B0 and B1 for the 6 GHz radio
- Antenna Options : AP-ANT-311, AP-ANT-312, AP-ANT-313 (1x1 Omni Dipole), AP-ANT-320 (2x2 Downtilt Omni Ceiling), AP-ANT-325, AP-ANT-328 (2x2 Directional Panel), AP-ANT-340 (4x4 Downtilt Omni Ceiling), AP-ANT-345, AP-ANT-348 (4x4 Directional Panel)

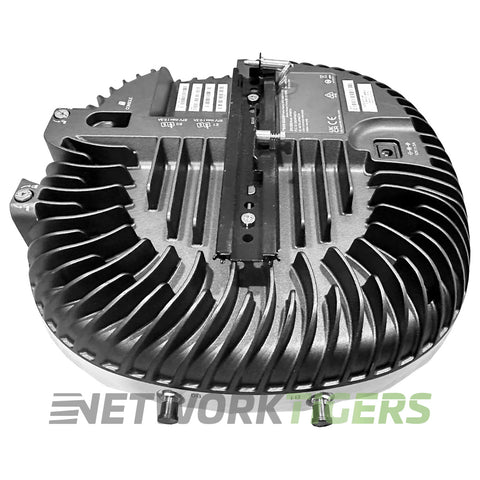

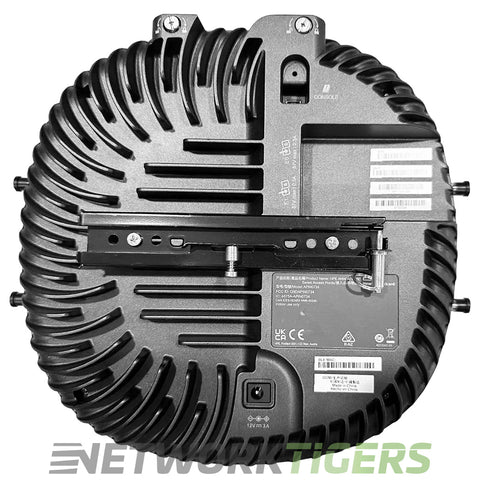

- Mounts Included : A mounting bracket has been preinstalled on the back of the access point. This bracket is used to secure the access point to any of the mount kits (sold separately)
- Model Number : S1G33A
- Part Number : S1G33A, AP‑734, AP‑734-US, APIN0734
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba AP‑734 S1G33A US Wi-Fi 7 802.11be External Antenna Campus WAP as described above
- One (1) Mounting Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Kit Not Included
