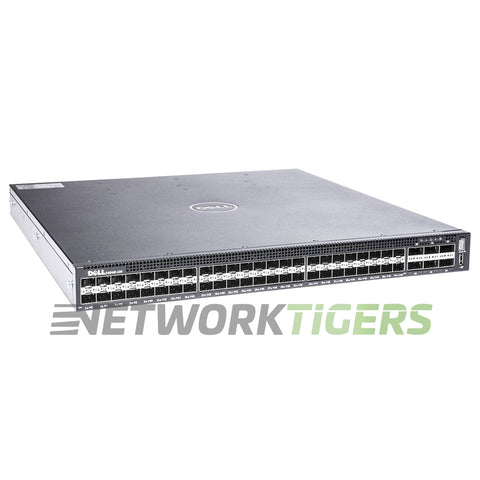

The Dell S4048-ON is a 1RU top-of-rack switch with 48x 10GB SFP+ ports and 6x 40GB QSFP+ uplinks. Each QSFP+ port can also break out to 4x 10GB.
Dell rates it at 1.44 Tbps of switching capacity and 1,080 Mpps, with a 12 MB packet buffer, latency under 650 ns and a 160K MAC table. Up to six units can be stacked. The chassis has two power supply bays. This is the reversed-airflow version: air moves from the power supplies to the I/O panel (back-to-front, port-side exhaust), so the ports face the hot aisle.
This listing is new open box. Transceivers are not included.
If your rack needs the opposite airflow, the S4048-ON listing is the front-to-back version. The same model is also available seller refurbished. This Dell S4048-ON-RA switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ45 Console Management with RS232 signaling, 1x USB 2.0 type A to support mass storage device, 1x Micro-USB 2.0 type B Serial Console Port
- Stacking Ports : User port stacking support for up to six units and a total stack bandwidth of up to 320Gbps bandwidth
- Switch Version : OS 9
- AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
- Fan Module Options : 2x Fan Modules
- Power Supplies Included : 1x AC PSU Included
- Switching Capacity : 1.44Tbps (full-duplex) non-blocking switching fabric delivers line-rate performance under full load with sub 650ns latency
- Forwarding Rate : 1080 Mpps
- MAC Address Table Size : 160,000
- Alternative Dell Part Numbers : 210-ADUZ
- Model Number : S4048-ON-RA
- Part Number : S4048-ON-RA, 210-ADUZ, S4048-ON RA
- Condition : New
- One (1) NEW Dell S4048-ON-RA 48x 10GB SFP+ 6x 40GB QSFP+ B-F Airflow 210-ADUZ Switch as described above
