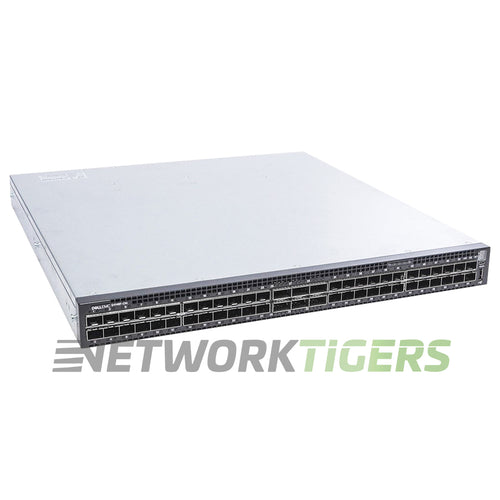

The Dell S4148F-ON is a 1RU top-of-rack switch with 48x 10GB SFP+ ports, 2x 40GB QSFP+ ports and 4x 100GB QSFP28 ports. With breakout it supports up to 72 ports of 10GB, 16 of 25GB or 4 of 100GB.
Dell rates it at 1.76 Tbps of switching capacity and 1,320 Mpps, with a 12 MB packet buffer, a 272K MAC table in scaled L2 mode and 4 GB of CPU memory. The two AC power supplies and four fan trays are hot-swappable; the 550W supplies are Dell 450-AFLL (I/O to PSU airflow) and 450-AFLK (PSU to I/O airflow). This is the standard-airflow version: air moves from the I/O panel to the power supplies (front-to-back, port-side intake), so the ports face the cold aisle.
This listing is seller refurbished and tested and ships with two AC power supplies, four fan modules and two power cords, as recorded for this unit. It includes the OS10 Permanent Version. Transceivers are not included.
If your rack needs the opposite airflow, the S4148F-ON-RA listing is the back-to-front version. The same model is also available new open box. This seller refurbished Dell S4148F-ON switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit QSFP28
- Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
- Switch Version : Includes OS10 Licence
- AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
- Fan Module Options : 4x Fan Modules Included
- Power Supplies Included : 2x AC PSU's Included
- Alternative Dell Part Numbers : 210-ALSI
- Switching Capacity : 960Gbps
- Forwarding Rate : 720Mpps
- MAC Address Table Size : 272,000
- Latency : 800 nanoseconds
- Model Number : S4148F-ON
- Part Number : S4148F-ON, 210-ALSI
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell S4148F-ON 210-ALSI 48x SFP+ 4x QSFP28 2x QSFP+ F-B Air OS10 Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
