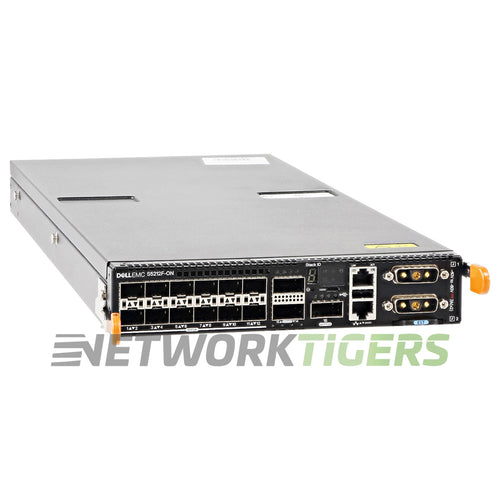

Dell S5212F-ON-RA 12x 25GB SFP28 3x 100GB QSFP28 Back-to-Front Air OS10 Switch

Dell S5212F-ON-RA 12x 25GB SFP28 3x 100GB QSFP28 Back-to-Front Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-0755

Overview

The Dell S5212F-ON-RA switch is designed with high-performance networking in mind. With a total switching capacity of 1.08Tbps (2.16Tbps full-duplex) and a forwarding rate of 892Mpps, this switch ensures fast and reliable data transfers for your network.

Featuring 12x 25GB SFP28 ports and 3x 100GB QSFP28 ports, the Dell S5212F-ON-RA offers flexibility to meet the demands of your network infrastructure. The MAC address table size of up to 160,000 entries allows for efficient packet routing throughout the network.

With low latency at just 906 nanoseconds, the Dell S5212F-ON-PG provides quick response times for real-time applications and sensitive data transfers.

Dell S5212F-ON: Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed). OS10 Included.


Specifications

  • Network Ports : 12x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 3x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x USB, 1x Serial Console, 1x Out of Band Management RJ45
  • Firmware Version : OS10 Included
  • Fan Modules AirFlow Direction : Fixed - Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Power Supplies Included : 2x AC Power Supplies Included - Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Switching Capacity : 1.08Tbps (2.16Tbps full-duplex)
  • Forwarding Rate : 892Mpps
  • MAC Address Table Size : 160,000
  • Latency : 906 nanoseconds
  • Rack Mounts : N/A
  • Model Number : S5212F-ON-RA
  • Part Number : S5212F-ON-RA, S5212F-ON RA
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Dell S5212F-ON-RA 12x 25GB SFP28 3x 100GB QSFP28 Back-to-Front Air OS10 Switch as described above
  • One (1) Power Cord Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
