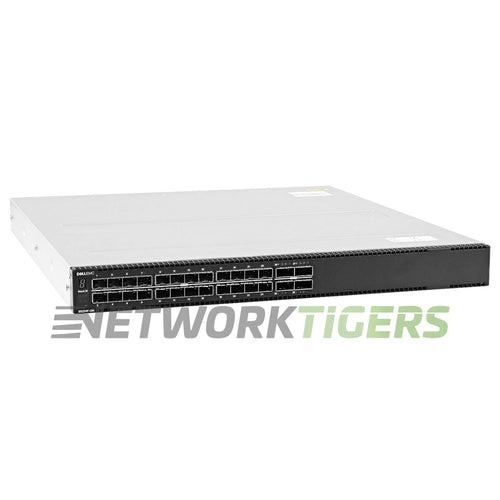

Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 Front-to-Back Air OS10 Switch

Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 Front-to-Back Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9621
UPC: 011110666000

Overview

The Dell S5224F-ON is a high-performance switch for data centers and large-scale networks. It provides fast and reliable connectivity with 24x 25GB SFP28 ports and 4x 100GB QSFP28 ports. The switching capacity of this switch is impressive at 1.08 Tbps, allowing for smooth data transmission even in busy networks.

With a forwarding rate of up to 1488 Mpps, the Dell S5224F-ON ensures efficient packet delivery with minimal latency. Its low-latency design guarantees quick response times during network operations – ideal for time-sensitive applications.

Equipped with a MAC address table size that can accommodate up to 160,000 entries, the DellS5520BFswitch offers ample space for managing many devices on your network. And thanks to its front-to-back airflow design, it is suitable for deployment strategies relying on power supply in cold aisle conditions

Dell S5224F-ON: Front-to-Back Airflow (I/O Panel to PSU Airflow / Normal). Includes OS10.


Specifications

  • Network Ports : 24x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 4x 100 Gigabit Ethernet QSFP28
  • Firmware Version : Includes OS10
  • Fan Modules AirFlow Direction : 4x Fan Modules - Front-to-Back Airflow (I/O Panel to PSU Airflow / Normal)
  • Power Supplies Included : 2x Hot Swappable Dual Redundant Power Supplies - Front-to-Back Airflow (I/O Panel to PSU Airflow / Normal)
  • Switching Capacity : 1.08Tbps
  • Forwarding Rate : 1488Mpps
  • MAC Address Table Size : 160,000
  • Latency : 881
  • Rack Mounts : Included (1-RU)
  • Model Number : S5224F-ON
  • Part Number : S5224F-ON
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 Front-to-Back Air OS10 Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
