NEW Dell S5248F-ON 48x 25GB SFP28 2x QSFP28-DD 4x QSFP28 F-B ONIE Switch
New

NEW Dell S5248F-ON 48x 25GB SFP28 2x QSFP28-DD 4x QSFP28 F-B ONIE Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9940
UPC: 011110654656

Overview

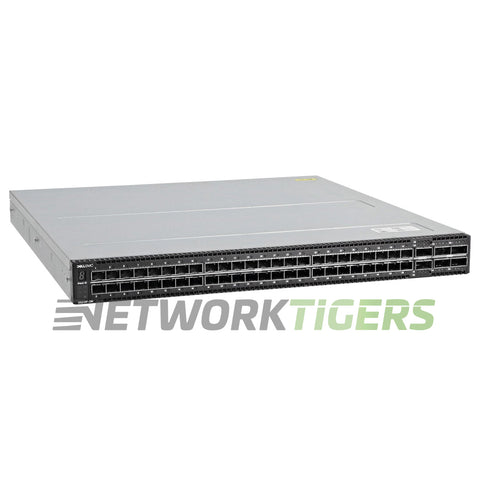

The Dell S5248F-ON is a 1RU leaf switch with 48x 25GB SFP28 ports, 4x 100GB QSFP28 ports and 2x QSFP28-DD ports, each of which carries 2x 100GB.

It suits a full rack of 25GB servers. Dell lists 2.0 Tbps of switching capacity (4.0 Tbps full duplex), a 32 MB packet buffer and a 160K MAC table. The two power supplies and four fan modules are hot-swappable. This is the standard-airflow version: air moves from the I/O panel to the power supplies (front-to-back, port-side intake), so the ports face the cold aisle.

This listing is new open box. It ships with ONIE; OS10 is not included. Transceivers are not included.

This Dell S5248F-ON switch is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 2x 200 Gigabit Ethernet QSFP28-DD, 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Gigabit Ethernet Management, 1x RJ45 Management, 1x USB
  • Product Family : EMC S-Series
  • Switch Version : ONIE - OS10 Not Included
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow / Normal)
  • Fan Module Options : 4x Fan Modules
  • Power Supplies Included : 2x 750W AC PSU's Included
  • Switching Capacity : 2.0 Tbps
  • Forwarding Rate : 1.5 Bpps
  • MAC Address Table Size : 160000 entries
  • Latency : 847 nanoseconds
  • Model Number : S5248F-ON
  • Part Number : S5248F-ON
  • Condition : New


Included

  • One (1) NEW Dell S5248F-ON 48x 25GB SFP28 2x QSFP28-DD 4x QSFP28 F-B ONIE Switch as described above
