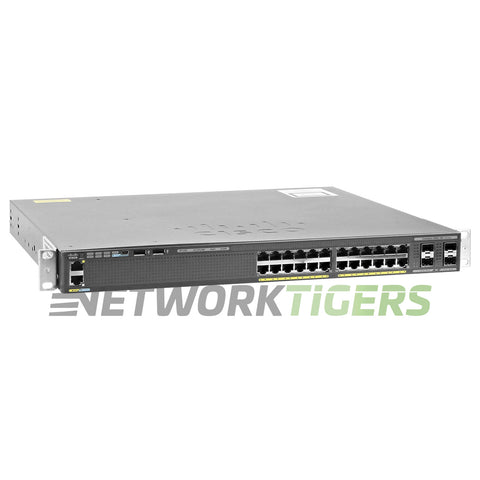

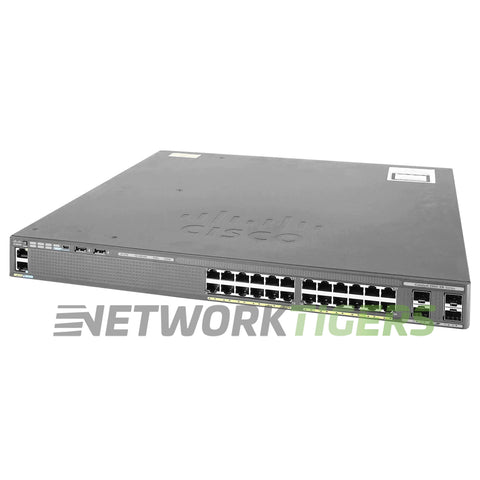

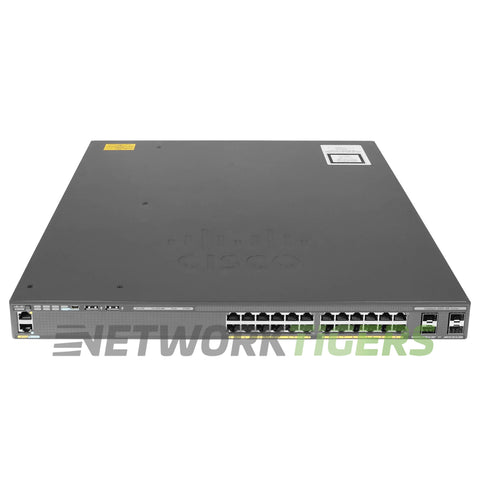

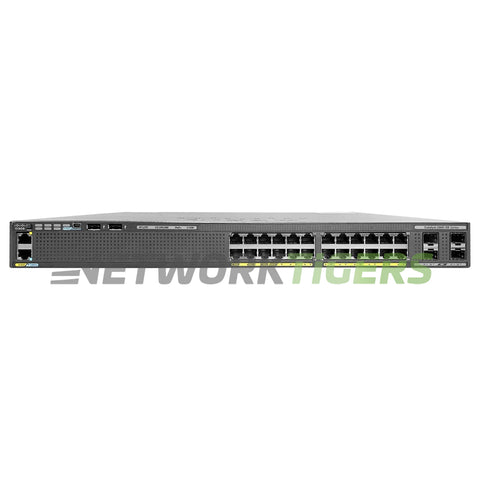

The Cisco WS-C2960XR-24PS-I is a fixed-configuration Catalyst 2960XR Series switch with a 1U rack-mount form factor. It includes 24 x 10/100/1000 RJ45 ports with Power over Ethernet and 4 x 1 Gigabit SFP uplink ports.
The PoE budget is 370W, with PoE+ supported on the first 12 ports. Switching capacity is 216 Gbps, forwarding rate is 71.4 Mpps, and the MAC address table holds up to 16,000 entries. It ships with a field-replaceable AC power supply and can accommodate a second supply. FlexStack-Plus stacking requires a separate module and cable.
Cisco Catalyst WS-C2960XR-24PS-I: 24 PoE (PoE+ for 12) Gigabit Ethernet with 370W power budget + 4 x SFP; Catalyst 2960-XR switch models include a field-replaceable modular power supply and can accommodate a second power supply.
- Network Ports : 24x 1 Gigabit Ethernet PoE (PoE+ for 12)
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 1x Console Management RJ45, 1x Fast Ethernet Management, 1x mini-USB Console (Type B), 2x USB (Type A)
- Stacking Ports : 1x Stacking Module Slot - Module Not Included - Sold Separately - C2960X-STACK
- Stacking Cable Options : Cables sold separately - CAB-STK-E-0.5M, CAB-STK-E-1M, CAB-STK-E-3M
- Switch Version : IP Lite

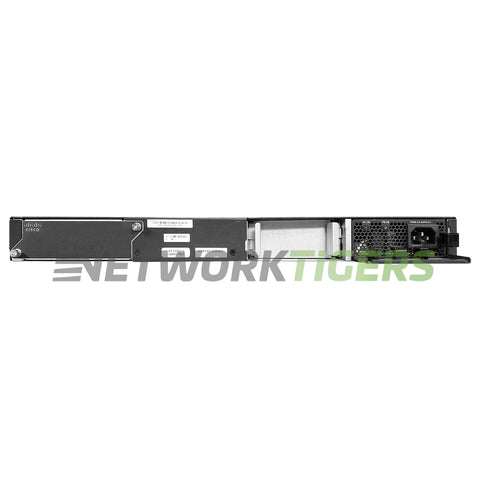

- Power Supplies Included : 1x PWR-C2-640WAC Included - 2x PSU Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C2-250WAC, PWR-C2-640WAC, PWR-C2-1025WAC
- PoE Budget : 370W
- Switching Capacity : 216 Gbps
- Forwarding Rate : 71.4 Mpps
- MAC Address Table Size : 16,000
- Model Number : WS-C2960XR-24PS-I
- Part Number : WS-C2960XR-24PS-I, WS-C2960XR-24PS-I=, WS-C2960XR-24PS-I-WS
- Condition : New
- One (1) NEW Cisco WS-C2960XR-24PS-I 24x 1GB PoE RJ45 4x 1GB SFP Switch as described above
