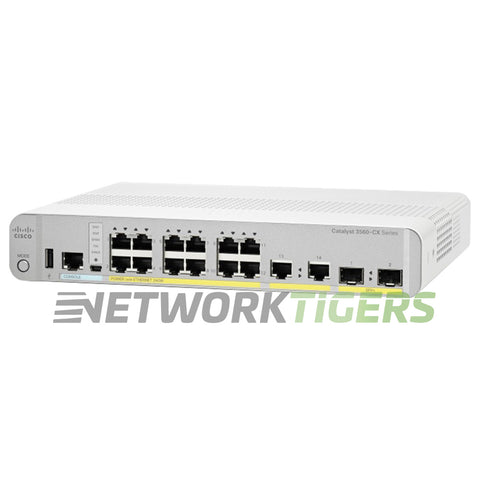

The Cisco WS-C3560CX-12PC-S is a fanless Catalyst 3560-CX compact switch with twelve 10/100/1000 PoE+ ports and a 240W PoE budget, for phones, cameras and access points in classrooms, retail spaces and offices. At 30W PoE+ per port, the 240W budget covers eight ports at full power at the same time, so plan the mix of devices if all twelve will draw power.
Uplinks are two Gigabit copper ports and two 1GB SFP slots. The switch runs IP Base with 512 MB DRAM and 128 MB flash, forwards 23.8 Mpps and has a built-in AC power supply.
If your uplink needs 10GB, the WS-C3560CX-12PD-S with 2x 10GB SFP+ uplinks keeps the same twelve PoE+ ports. If you do not need PoE, the WS-C3560CX-12TC-S data-only switch is the alternative. Rack brackets are sold separately, for example the RCKMNT-23-CMPCT rack mount kit.
This Cisco Catalyst 3560-CX PoE+ switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 12x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 2x 1 Gigabit Ethernet RJ45, 2x 1GB SFP
- Management Ports : 1x RJ45 Serial Console, 1x USB mini-Type B (console), 1x USB Type A
- Switch Version : IP Base
- AirFlow Direction : Fanless (no fans, no forced airflow)
- Fan Module Options : No fans - fanless design
- Power Supplies Included : 1x internal AC power supply (built in)
- PoE Budget : 240W
- Switching Capacity : 32 Gbps
- Forwarding Rate : 23.8 Mpps
- DRAM and Flash : 512 MB DRAM, 128 MB Flash
- Model Number : WS-C3560CX-12PC-S
- Part Number : WS-C3560CX-12PC-S, WS-C3560CX-12PC-S=
- Condition : New
- SFP Modules Not Included
