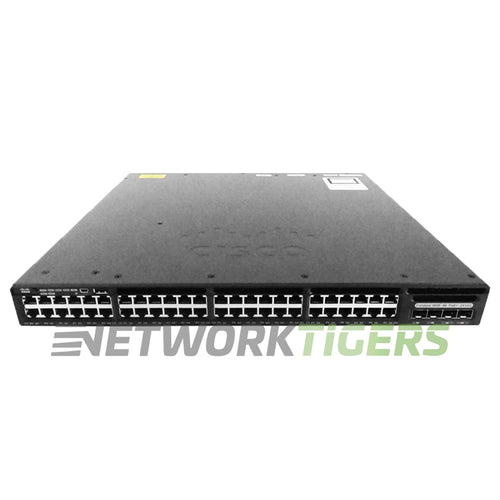

The Cisco WS-C3650-48FD-E is a 1 RU Catalyst 3650 access switch with 48 10/100/1000 PoE+ RJ45 ports and two 10GB SFP+ uplinks plus two 1GB SFP uplinks. It fits wiring closets that power IP phones, wireless access points and cameras from the switch itself.
With the default PWR-C2-1025WAC supply, Cisco rates 775 W of PoE. The switch has two power supply bays, and Cisco specifies a second PWR-C2-1025WAC for 30 W PoE+ on all 48 ports at once. The three FAN-T1 fans are field-replaceable.
The -E suffix means the unit carries the IP Services version; the same hardware is also sold as -L for LAN Base and -S for IP Base. Stacking is optional. A standalone 3650 has STACK-T2-BLANK covers in its two stacking ports, and building a StackWise-160 stack (160 Gbps, up to nine switches) needs the C3650-STACK-KIT, which holds two StackWise adapters and a 0.5 m cable. Every switch in a stack must run the same license version.
This listing ships the switch with one AC power supply, three fan modules, a power cord and a set of rack mount brackets.
If you need a different feature set on the same hardware, see the WS-C3650-48FD-S IP Base version. To stack this switch, add the C3650-STACK-KIT StackWise-160 stack kit.
This seller refurbished Cisco WS-C3650-48FD-E switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 2x 10GB SFP+, 2x 1GB SFP
- Management Ports : 1x Console RJ45, 1x Gigabit Ethernet RJ45, 1x USB (Type A), 1x USB (Mini Type A)
- Stacking Ports : 2x StackWise connectors
- Stacking Options : C3650-STACK-KIT - Not Included
- Stacking Cable Options : STACK-T2-50CM, STACK-T2-1M, STACK-T2-3M - Not Included
- Switch Version : IP Services
- Fan Module Options : 3x FAN-T1 Fan Modules included.
- Power Supplies Included : 1x PWR-C2-1025WAC (2 power supply bays)
- Power Supply Options : PWR-C2-1025WAC, PWR-C2-640WAC, PWR-C2-250WAC
- PoE Budget : 775 W
- Switching Capacity : 176 Gbps
- Forwarding Rate : 104.16 Mpps
- MAC Address Table Size : 32,000
- Model Number : WS-C3650-48FD-E
- Part Number : WS-C3650-48FD-E, WS-C3650-48FD-E=, WS-C3650-48FD-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco WS-C3650-48FD-E 48x 1GB PoE+ RJ45 2x 10GB SFP+ 2x 1GB SFP Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
