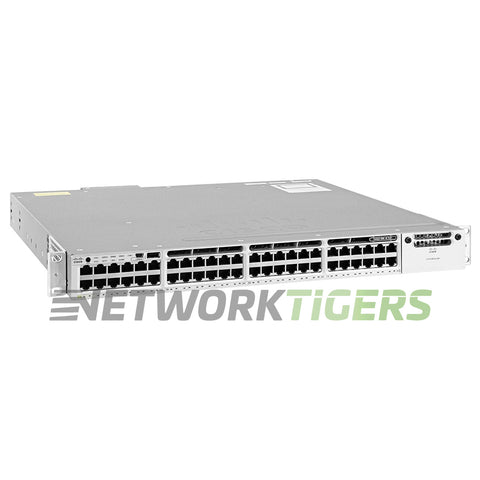

NEW Cisco WS-C3850-48F-S 48x 1GB PoE+ RJ45 1x Module Slot Switch
New

NEW Cisco WS-C3850-48F-S 48x 1GB PoE+ RJ45 1x Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1775
UPC: 882658547874

Overview

The Cisco WS-C3850-48F-S switch offers high performance and flexibility for various networking needs. With 48 Gigabit Ethernet ports supporting PoE+, this switch enables simultaneous data transfer and power delivery to connected devices such as IP phones and wireless access points.

This model also features a module slot allowing expansion options, enhancing its capabilities even further. Its impressive PoE budget of 800W ensures sufficient power supply to meet demanding requirements.

Regarding switching capacity, this Cisco switch can handle up to 176 Gbps throughput, ensuring smooth communication between network devices without bottlenecks. The forwarding rate is equally notable at 130.95 Mpps (million packets per second), enabling efficient data transmission within the network.

Cisco Catalyst WS-C3850-48F-S: Stackable 48x 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, (stacking cables not included).


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
  • Management Ports : 1x USB Type A, 1x Console Mini USB Type B, 1x RS-232 RJ45 Management, 1x Gigabit Ethernet Management
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately - CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) | Stacking bandwidth is 480 Gbps
  • Module Slots and Options : 1x Expansion Module Slots - Modules are not included
  • Expansion Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+), C3850-NM-4-10G (4x 10GB SFP+)
  • Fan Modules AirFlow Direction : 3x C3850-FAN-T1 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC - 1100W AC Power Supply Included - 2x Slots (Dual Capable) - 2nd Power Supply Sold Separately - Options are - PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - DC Power available using PWR-C1-440WDC.
  • PoE Budget : 800W
  • Switching Capacity : 176 GBps
  • Forwarding Rate : 130.95 Mpps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • Model Number : WS-C3850-48F-S
  • Part Number : WS-C3850-48F-S, WS-C3850-48F-S=, WS-C3850-48F-S-WS
  • Condition : New


Included

  • One (1) NEW Cisco WS-C3850-48F-S 48x 1GB PoE+ RJ45 1x Module Slot Switch as described above
