NEW Cisco WS-C3850-48U-E 48x 1GB UPoE RJ45 1x Module Slot Switch
New

NEW Cisco WS-C3850-48U-E 48x 1GB UPoE RJ45 1x Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

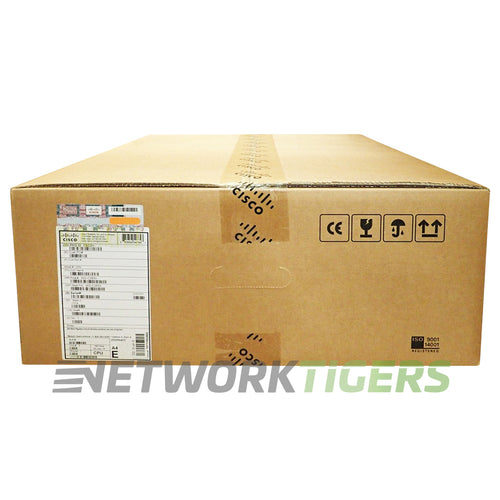

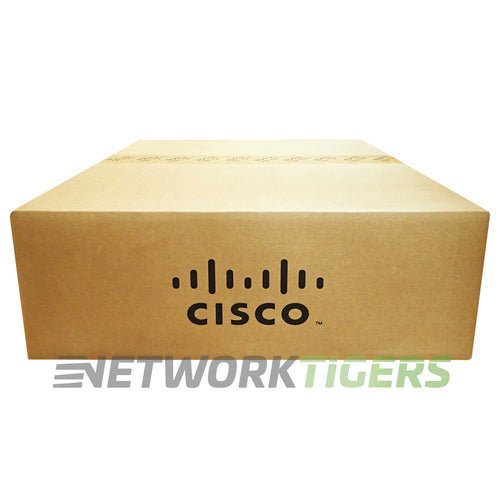

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1780
UPC: 882658547959

Overview

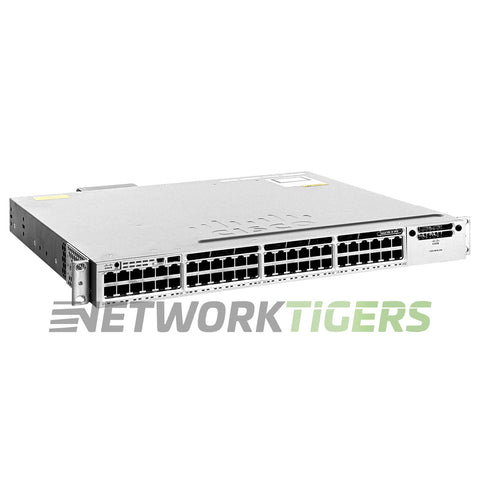

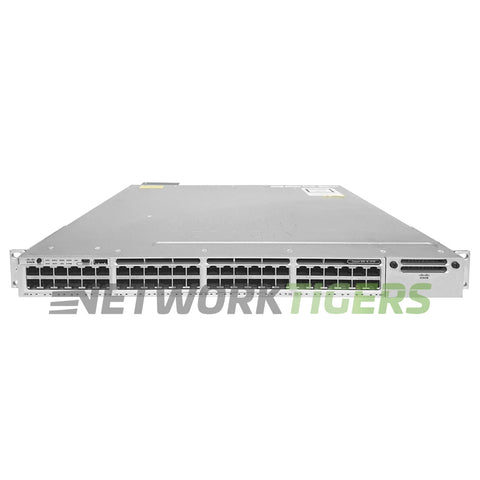

The Cisco WS-C3850-48U-E is a high-performance switch with 48x 1GB UPoE RJ45 ports and one module slot. The switching capacity of this switch is an impressive 176 Gbps, ensuring fast and reliable data transfer between connected devices.

Regarding forwarding rate, the Cisco WS-C3850-48u-E can handle up to 130.95 million packets per second (Mpps), allowing for seamless network operation even under heavy loads. With its MAC Address Table size able to store up to 32,000 entries, users have ample space for mapping device addresses in their network.

This Cisco switch offers advanced features like modular upgrades using additional modules that fit into the available slot on the front panel.

Cisco Catalyst WS-C3850-48U-E: Stackable 48x 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply 1 RU.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet UPoE RJ45
  • Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
  • Management Ports : 1x USB Type A, 1x Console MIni USB Type B, 1x RS-232 RJ45 Management, 1x Gigabit Ethernet Management
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately - CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) | Stacking bandwidth is 480 Gbps
  • Module Slots and Options : 1x Expansion Module Slots - Modules are not included
  • Expansion Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+), C3850-NM-4-10G (4x 10GB SFP+)
  • Fan Modules AirFlow Direction : 3x C3850-FAN-T1 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC - 1100W AC Power Supply Included - 2x Slots (Dual Capable) - 2nd Power Supply Sold Separately - Options are - PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - DC Power available using PWR-C1-440WDC.
  • PoE Budget : 800W
  • Switching Capacity : 176 Gbps
  • Forwarding Rate : 130.95 Mpps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • Model Number : WS-C3850-48U-E
  • Part Number : WS-C3850-48U-E, WS-C3850-48U-E=, WS-C3850-48U-E-WS
  • Condition : New


Included

  • One (1) NEW Cisco WS-C3850-48U-E 48x 1GB UPoE RJ45 1x Module Slot Switch as described above
