The Juniper AP43-US is an advanced wireless access point (AP) that supports the latest Wi-Fi 6 (802.11ax) standard to deliver high-performance connectivity in demanding environments. With its internal antenna configuration, this AP utilizes cutting-edge 4x4:4SS technology for enhanced coverage and increased capacity.
Featuring next-generation security protocols and multiple radios working concurrently, the Juniper AP43-US ensures seamless performance even in crowded networks. It offers robust network management capabilities with cloud-based activation and centralized control through Contrail SD-LAN or Mist Cloud platforms.
Designed for scalability, this sleek access point can effortlessly adapt to changing business requirements while providing a consistent user experience across devices. Its intelligent radio resource allocation optimizes spectrum utilization efficiently, minimizing interference from neighboring APs.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6), including OFDMA, 1024-QAM, MU-MIMO, TWT, and BSS Coloring, backwards compatible with 802.11a/b/g/n/ac
- Managed By : Cloud platform only, AI-driven
- Unclaimed : Yes - this unit ships unclaimed
- Suggested Use : Indoor deployment leveraging integrated IoT sensors and a dedicated IoT interface port for environmental context and location-based services
- Region : US
- Radios : 3x total, one 2.4GHz, one 5GHz, plus a dedicated dual-band third radio for WIDS/WIPS, spectrum analysis, and location analytics
- Spatial Streams per Radio : 4x streams on both 2.4GHz and 5GHz using 4x4 by 4, for 8x access streams total plus the scan radio
- Maximum Data Rate : 1148 Mbps on 2.4GHz and 2400 Mbps on 5GHz, up to 3.5 Gbps dual-band combined
- Bluetooth / IoT Radios : Bluetooth 5.0, with a 16-element directional virtual antenna array plus an omnidirectional Bluetooth antenna
- PoE Standard : 802.3at or 802.3bt, PoE output on the second port requires 802.3bt input on the primary port - injector sold separately
- DC Power Input : Supported via optional 12V/3A DC power supply, adapter takes 100-240VAC input, sold separately
- Uplink Ports : 1x 100/1000Base-T, 2.5GBase-T RJ45, PoE input, plus 1x 10/100/1000Base-T RJ45 with optional PoE output
- Other Ports : 1x USB 2.0 support interface, 1x IoT port (analog/digital I/O), 1x 12VDC input jack for optional power supply
- Antenna Type : Internal omnidirectional, 4x on 2.4GHz (4dBi peak gain), 4x on 5GHz (6dBi peak gain), plus the 16-element directional Bluetooth array
- Mounting Options : Threaded rod mounts (3/8 in or 16mm), or various T-rail adapters (9/16 in, 15/16 in, or 1.5 in), all sold separately
- Mounts Included : Universal Bracket Included (APBR-U)
- Model Number : AP43-US
- Part Number : AP43-US
- Condition : New

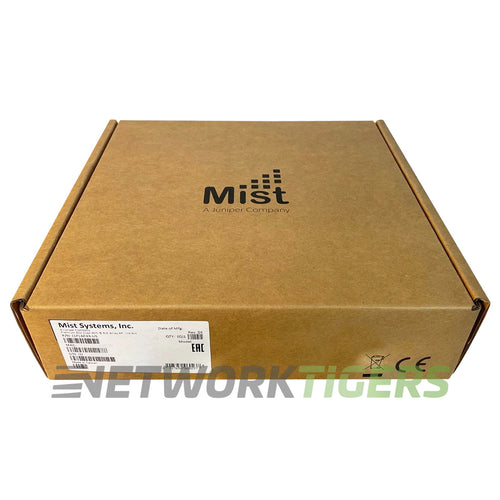

- One (1) NEW Juniper AP43-US Wi-Fi 6 802.11ax US Internal Antenna Unclaimed Indoor WAP as described above
