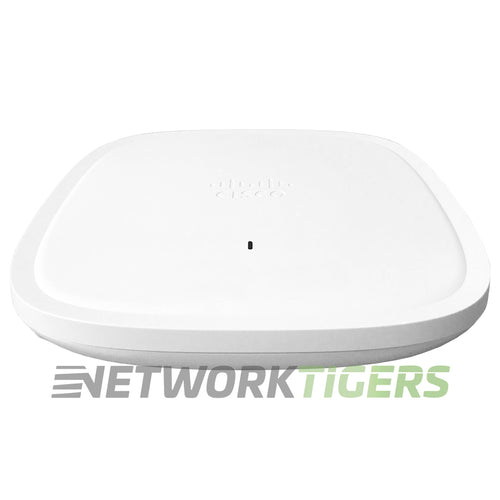

The Cisco C9120AXI-B Catalyst 9120AX is a cutting-edge Wi-Fi access point with exceptional performance and reliability. Its 4x4:4 MIMO internal antenna configuration provides high-speed wireless connectivity in 2.4 Ghz and 5 GHz frequency bands.
Equipped with MU-MIMO technology, this AP can handle multiple connections, delivering seamless data transfer for all connected devices. It supports the latest Wi-Fi standard, Wi-Fi 6 (802.11ax), ensuring faster speeds and increased capacity compared to previous generations.
Designed for use in the United States (regulatory domain B), this access point complies with local regulations while offering flexibility in deployment options.
Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas: C9120AXI-B: Cisco Catalyst 9120AX Series
- Wi-Fi Standard : Wi-Fi 6 (802.11ax), also backward compatible with 802.11n/ac
- Managed By : Cisco Catalyst 9800 Series Wireless Controllers, or Cisco 3500/5520/8540 Series Controllers / Virtual Wireless Controller
- Suggested Use : Indoor environments, standard deployments (internal antennas)
- Region : B (FCC, United States)
- Radios : Dual radio - flexible radio (2.4GHz or 5GHz) + dedicated 5GHz radio. Supports Flexible Radio Assignment (2.4/5GHz mode or dual 5GHz mode)
- Spatial Streams per Radio : 4x4 MIMO (four spatial streams) on each radio
- Maximum Data Rate : Up to 5.38 Gbps (802.11ax, 160MHz channel, combined 5GHz + 20MHz 2.4GHz)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio
- PoE Standard : 802.3at PoE+, 802.3bt Cisco UPOE/UPOE+, 802.3af PoE also supported with reduced functionality - Power Injector not included - ordered separately (AIR-PWRINJ6, AIR-PWRINJ5)
- Uplink Ports : 1x 2.5 Gigabit Ethernet RJ-45
- Other Ports : 1x RJ-45 Management Console, 1x USB 2.0
- Antenna Type : Internal, omnidirectional — 2.4GHz (4 dBi peak gain), 5GHz (5 dBi peak gain)
- Memory and Storage : RAM = 2 GB, Flash = 1 GB
- Mounts Included : Not Included
- Model Number : C9120AXI-B
- Part Number : C9120AXI-B
- Condition : New

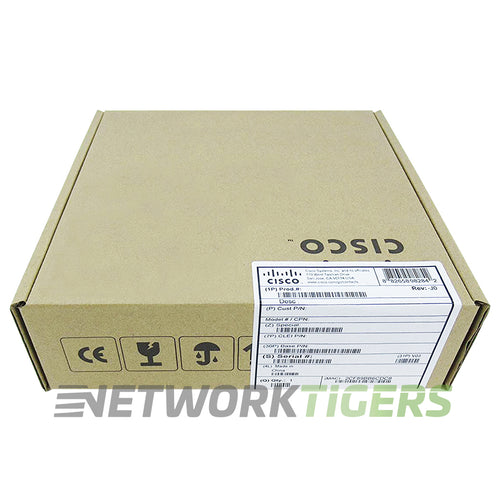

- One (1) NEW Cisco C9120AXI-B Catalyst 9120AX Wi-Fi 6 4x4:4 MIMO Internal Ant Wireless AP as described above
