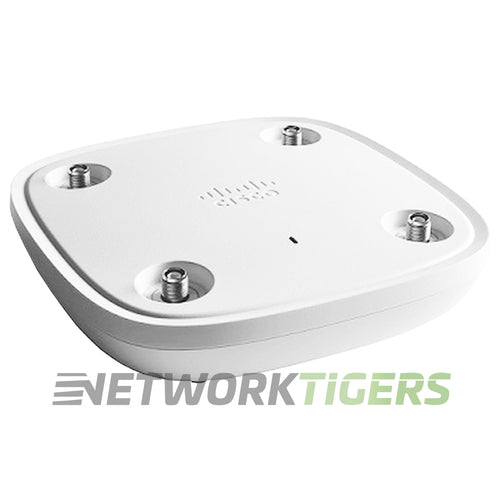

The Cisco C9120AXP-B Catalyst 9120AX Indoor WiFi 6 access point offers peak gains of 4 dBi at 2.4 GHz and 5 dBi at the higher frequency, providing reliable connectivity on both bands.
This WAP supports MU-MIMO with four spatial streams for efficient downlink transmissions. The integrated antennas ensure simple installation without sacrificing performance quality. Ideal for businesses seeking high-speed wireless connections in indoor settings, this model is designed to deliver consistent results across different frequencies while maximizing network capacity through advanced technology features.
Cisco C9120AXP-B Catalyst 9120AX Indoor 802.11ax (Wi-Fi 6) 4x4 MU-MIMO WAP.
- Wi-Fi Standard : 802.11ax Wi-Fi 6, also backward compatible with 802.11a/b/g/n/ac
- Managed By : Cisco Catalyst 9800 Series Wireless Controllers, Cisco 3500/5520/8540 Series Wireless Controllers, Cisco Virtual Wireless Controller, or Cisco DNA Center for analytics and automation
- Suggested Use : Professional installations in indoor high-density and large open-area environments such as auditoriums, convention centers, libraries, cafeterias, arenas/stadiums
- Radios : Flexible Radio Assignment with two radios, either 2.4 GHz plus 5 GHz mode, or Dual 5 GHz mode for increased capacity, plus integrated Bluetooth Low Energy 5 radio
- Spatial Streams per Radio : 4x4 MIMO with four spatial streams on both radios
- Maximum Data Rate : Up to 5.38 Gbps PHY data rate 160 MHz on 5 GHz plus 20 MHz on 2.4 GHz, up to 5.2 Gbps over-the-air in Dual 5 GHz mode 2 x 2.6 Gbps
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio for location tracking and wayfinding
- PoE Standard : 802.3at PoE+, 802.3bt Cisco UPOE/UPOE+, 802.3af PoE also supported with reduced functionality - PoE Injectors not included AIR-PWRINJ6 for 802.3at or AIR-PWRINJ5 for 802.3af
- DC Power Input : N/A - PoE Only
- Uplink Ports : One Multigigabit Ethernet port 100/1000/2500 RJ-45, IEEE 802.3bz, Auto-MDIX support
- Other Ports : Management console port RJ-45, USB 2.0 at 4.5W
- Antenna Type : External, sold separately, certified for antenna gains up to 13 dBi at 2.4 GHz and 5 GHz using the AIR-ANT2513P4M-N antenna
- Antenna Options : Broad selection of external antennas available separately, smart antenna connector allows two sets of antennas active simultaneously on a single AP
- Mounts Included : Not Included
- Model Number : C9120AXP-B
- Part Number : C9120AXP-B, C9120AXP-B=, C9120AXP-B-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9120AXP-B Wi-Fi 6 802.11ax External Antenna (Not Included) Indoor WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Wall Mount Bracket Not Included
