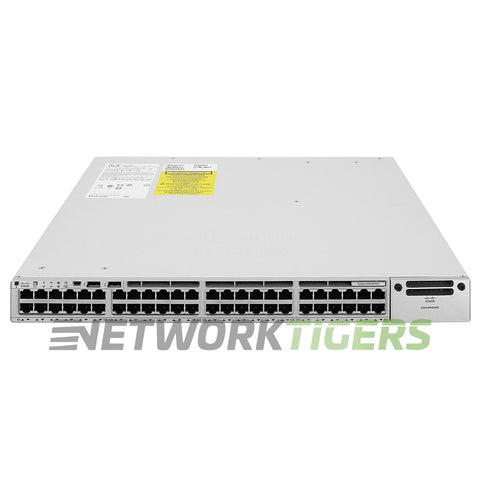

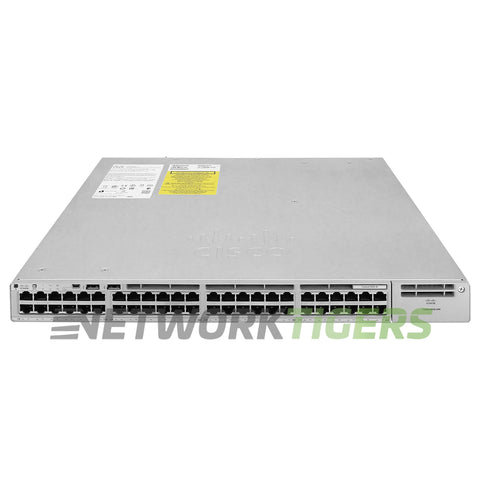

Cisco's C9200-48T-E is the 48-port Catalyst 9200 data switch in the Network Essentials version. This listing is a new open box unit for access layers that do not power endpoints.
It offers 48 RJ45 ports at 10/100/1000 with no PoE and one modular slot for uplinks: the C9200-NM-4G for 1 Gigabit SFP or the new C9200-NM-4X for 10 Gigabit SFP+. Switching capacity is 176 Gbps and forwarding rate 130.95 Mpps, or 336 Gbps and 250 Mpps stacked. StackWise-160 joins up to eight C9200 switches using the C9200-STACK-KIT, ordered separately. Cooling air enters through the port side and sides and exits at the rear. It carries 4 GB of DRAM, 4 GB of flash and a 32,000-entry MAC address table, and the two fan modules give N+1 redundancy with hot swap.
As a new switch it ships as Cisco builds it: one PWR-C6-125WAC with a blank cover in the second power bay and two C9200-FAN fan modules. The uplink slot is empty.
For the Advantage tier, see the new C9200-48T-A. A seller refurbished C9200-48T-E is also available, and a new C9200-48P-E adds PoE+.
This Cisco Catalyst 9200 48-port data switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet RJ45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ45 Console, 1x 1 Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately
- Stacking Options : Stacking Bandwidth = 160 Gbps | This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-4G (4x 1GB SFP), C9200-NM-4X (4x 1/10GB SFP/SFP+), C9200-NM-BLANK - none included, ordered separately
- Switch Version : Network Essentials
- AirFlow Direction : Front-and-side-to-back (port-side and side intake) only - no back-to-front version
- Fan Module Options : 2x C9200-FAN included (2 fan bays)
- Power Supplies Included : 1x PWR-C6-125WAC (2 power supply bays)
- Power Supply Options : PWR-C6-125WAC, PWR-C5-BLANK
- PoE Budget : N/A
- Switching Capacity : 176 Gbps (336 Gbps with Stacking)
- Forwarding Rate : 130.95 Mpps (250 Mpps with Stacking)
- MAC Address Table Size : 32,000
- VLAN ID's : 4094
- SD Access Support : Yes (4 Virtual Networks)
- Model Number : C9200-48T-E
- Part Number : C9200-48T-E, C9200-48T-E=, C9200-48T-E-WS
- Condition : New
- One (1) NEW Cisco C9200-48T-E 48x 1GB RJ45 1x Module Slot Switch as described above
