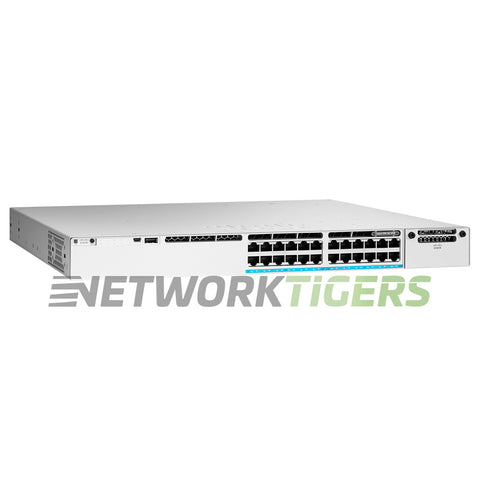

NEW Cisco C9300-24UX-A 24x MultiGB UPOE RJ45 1x Module Slot Switch
New

NEW Cisco C9300-24UX-A 24x MultiGB UPOE RJ45 1x Module Slot Switch

$ 10,119.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3790 ASK FOR QUOTE
UPC: 889728051644

Overview

This NEW Cisco Catalyst C9300-24UX-A (Network Advantage version) arrives in open box as a 24-port Multigigabit UPOE switch that connects Wi-Fi 6 access points at up to 10G per port and stacks to eight units.

  • Up to 192 Multigigabit ports: Eight switches in a stack give 192 Multigigabit UPOE ports, with stacked switching capacity of 1,120 Gbps and forwarding of 833.33 Mpps over 480 Gbps stack cables.
  • Tagged and weighed: An embedded RFID tag and blue beacon LED help with inventory. The chassis weighs 18.18 lb (8.25 kg) with its default supply, and its MTBF is 214,760 hours.
  • A bigger supply if you need it: The 1900W supply is an upgrade option for this model and lifts single-supply PoE to 1,360W, against 560W from the default 1100W.
  • Uplink modules by speed: Fit C9300-NM-2Q (2x 40G), C9300-NM-2Y (2x 25G/10G/1G), C9300-NM-8X (8x 10G/1G), C9300-NM-4M (4x Multigigabit), or C9300-NM-4G (4x 1G) in the slot.

Compare: Need a bigger PoE budget? The C9300-24UB-A provides 830W from its default supply, on 1G ports. Want more ports? The NEW C9300-48UN-A has 48 UPOE ports at up to 5G.

It ships as the switch itself. See all Cisco Catalyst 9300 switches and parts.

This Cisco C9300-24UX-A switch is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 24x MultiGigabit UPOE (100/1000/2.5GB/5GB/10) RJ45
  • Product Family : Catalyst 9300 Series
  • Management Ports : 1x RJ45 Console, 1x USB Mini-B Console, 1x 10/100/1000 RJ45 Ethernet Management, 1x USB Type A (storage), 1x USB 3.0 SSD Slot
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
  • Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
  • Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
  • Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x Multi Gigabit Ethernet RJ45)
  • Switch Version : Network Advantage
  • Fan Module Options : 3x FAN-T2 (3 fan bays)
  • Power Supplies Included : 1x PWR-C1-1100WAC (2 power supply bays)
  • Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC, PWR-C1-715WDC, PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P, PWR-C1-1900WHV-T
  • PoE Budget : 560W - Default PSU - (910W w/ 350W 2nd PSU, 1275W w/ 715W 2nd PSU, 1440W w/ 1100W 2nd PSU)
  • Switching Capacity : 640 Gbps (1120 Gbps with Stacking)
  • Forwarding Rate : 476.19 Mpps (833.33 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • Model Number : C9300-24UX-A
  • Part Number : C9300-24UX-A, C9300-24UX-A=, C9300-24UX-A-WS
  • Condition : New


Included

  • One (1) New Cisco C9300-24UX-A Catalyst 9300 Series 24x Multi Gigabit UPoE RJ45 1x Expansion Module Slot Switch as described above
