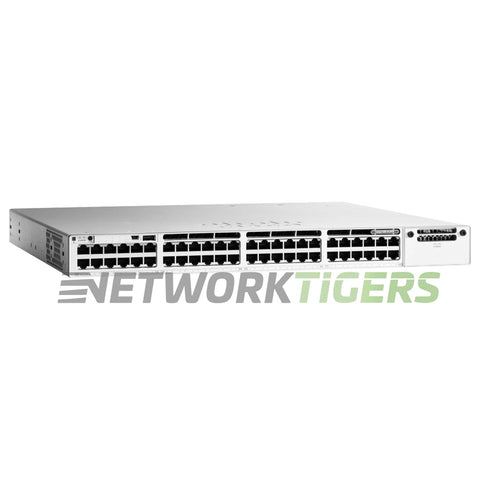

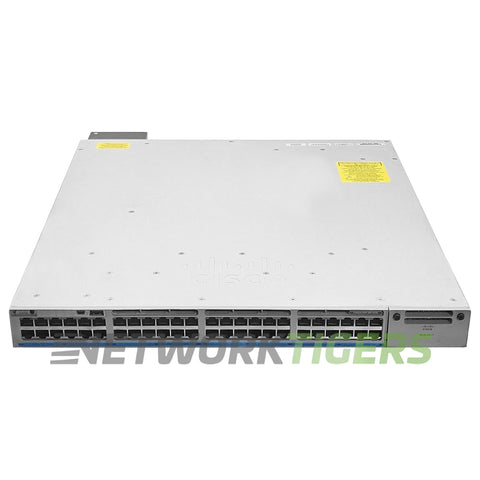

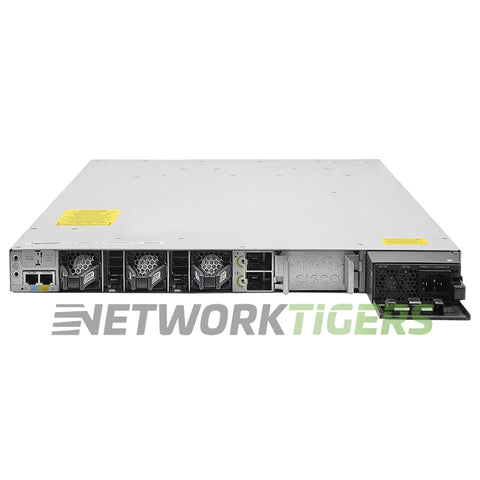

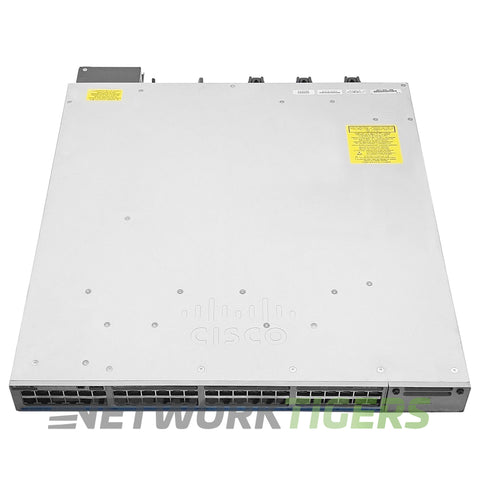

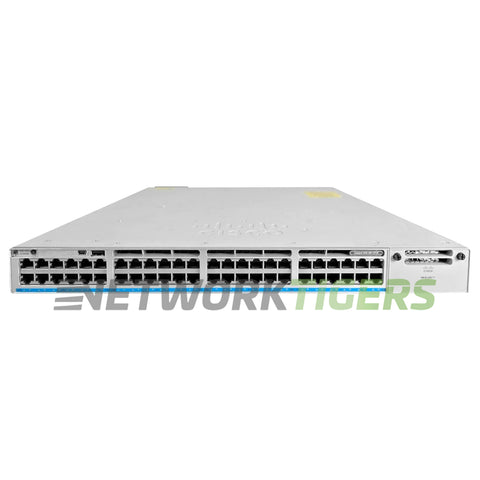

NEW Cisco C9300-48UN-A 48x 5GB UPOE RJ45 1x Module Slot Net Advantage Switch

$ 7,819.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3619 ASK FOR QUOTE
UPC: 889728051620

Overview

The NEW Cisco Catalyst C9300-48UN-A (Network Advantage version), supplied in open box, is a 48-port Multigigabit UPOE access switch with all 48 ports at up to 5G for Wi-Fi 6 closets and high-bandwidth endpoints, with a module slot for uplinks.

  • 384 ports at 5G in one stack: Eight switches over 480 Gbps cables give 384 UPOE ports at up to 5G. Stacked switching capacity reaches 1,120 Gbps, with 833.33 Mpps of forwarding.
  • Tag, weight, and depth: An embedded RFID tag and blue beacon LED aid inventory. The chassis weighs 20.05 lb (9.09 kg), is 22.2 in deep with its default supply, and has an MTBF of 198,647 hours.
  • A 1900W upgrade supply: The 1900W supply is an upgrade option that provides 1,445W of PoE on its own, against 645W from the default 1100W supply.
  • Modules for the slot: The slot takes C9300-NM-4M (4x Multigigabit), C9300-NM-2Y (2x 25G/10G/1G), C9300-NM-4G (4x 1G), C9300-NM-2Q (2x 40G), or C9300-NM-8X (8x 10G/1G).

Compare: Want fewer ports? The NEW C9300-24UX-A offers 24 UPOE ports, each up to 10G.

It ships as the switch itself. See all Cisco Catalyst 9300 switches and parts.

This Cisco C9300-48UN-A switch is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 5 Gigabit Ethernet UPOE RJ45
  • Management Ports : 1x RJ45 Console, 1x USB Mini-B Console, 1x 10/100/1000 RJ45 Ethernet Management, 1x USB Type A (storage), 1x USB 3.0 SSD Slot
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
  • Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
  • Module Slots : 1x Expansion Module Slot - None Included - Sold separately
  • Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
  • Switch Version : Network Advantage
  • Fan Module Options : 3x FAN-T2 (3 fan bays)
  • Power Supplies Included : 1x PWR-C1-1100WAC (2 power supply bays)
  • Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC, PWR-C1-715WDC, PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P, PWR-C1-1900WHV-T
  • PoE Budget : 645W (w/ Default PSU), 995W (w/ 350W Seconday PSU), 1360W (w/ 715W Secondary PSU), 1745W (w/ 1100W Secondary PSU)
  • Switching Capacity : 640 Gbps (1120 Gbps w/ Stacking)
  • Forwarding Rate : 476.19 Mpps (833.33 Mpps w/ Stacking)
  • MAC Address Table Size : 32,000
  • Model Number : C9300-48UN-A
  • Part Number : C9300-48UN-A, C9300-48UN-A=, C9300-48UN-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300-48UN-A 48x 5GB UPoE RJ45 1x Module Slot Net Advantage Switch as described above
