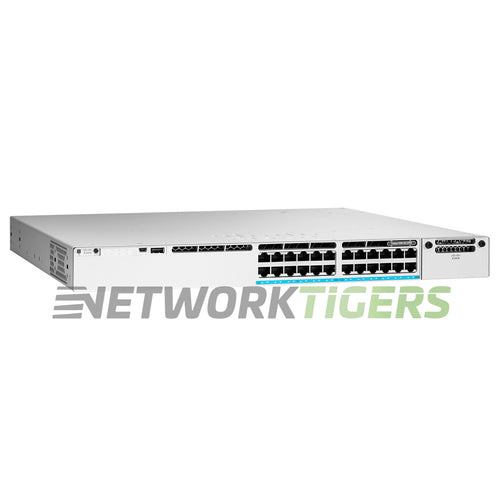

Cisco C9300-24UX-E 24x MultiGB UPOE RJ45 1x Expansion Module Slot Switch

Cisco C9300-24UX-E 24x MultiGB UPOE RJ45 1x Expansion Module Slot Switch

$ 1,704.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6765 ASK FOR QUOTE
UPC: 889728035606

Overview

This seller refurbished Cisco Catalyst C9300-24UX-E (Network Essentials version) is a 24-port Multigigabit UPOE access switch that forwards 476.19 Mpps across ports running up to 10G, for demanding Wi-Fi 6 and PoE endpoints in wiring closets.

  • Capacity to match 10G ports: Switching capacity is 640 Gbps and forwarding is 476.19 Mpps, backed by a 32 MB packet buffer and 9198-byte jumbo frames.
  • Power budget starting point: One 1100W supply gives 560W of PoE, short of the 720W needed for 30W on all 24 ports, so a second supply suits full deployments.
  • Uplink module options: Choose from C9300-NM-8X (8x 10G/1G), C9300-NM-4G (4x 1G), C9300-NM-2Q (2x 40G), C9300-NM-4M (4x Multigigabit), or C9300-NM-2Y (2x 25G/10G/1G) modules.
  • StackPower and stack limits: Eight switches stack at 480 Gbps, and StackPower can pool power across up to four switches, or eight with an XPS-2200.

Compare: Need more ports? The C9300-48UXM-E has 48 UPOE ports, 12 of them up to 10G.

It ships with one 1100W AC power supply, three fan modules, a power cord and a set of rack mount brackets. See all Cisco Catalyst 9300 switches and parts.

This seller refurbished Cisco C9300-24UX-E switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 24x MultiGigabit UPOE (100/1000/2.5GB/5GB/10) RJ45
  • Product Family : Catalyst 9300 Series
  • Management Ports : 1x RJ45 Console, 1x USB Mini-B Console, 1x 10/100/1000 RJ45 Ethernet Management, 1x USB Type A (storage), 1x USB 3.0 SSD Slot
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
  • Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
  • Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
  • Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x Multi Gigabit Ethernet RJ45)
  • Switch Version : Network Essentials
  • Fan Module Options : 3x FAN-T2 (3 fan bays)
  • Power Supplies Included : 1x PWR-C1-1100WAC (2 power supply bays)
  • Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC, PWR-C1-715WDC, PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P, PWR-C1-1900WHV-T
  • PoE Budget : 560W - Default PSU - (910W w/ 350W 2nd PSU, 1275W w/ 715W 2nd PSU, 1440W w/ 1100W 2nd PSU)
  • Switching Capacity : 640 Gbps (1120 Gbps with Stacking)
  • Forwarding Rate : 476.19 Mpps (833.33 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • Model Number : C9300-24UX-E
  • Part Number : C9300-24UX-E, C9300-24UX-E=, C9300-24UX-E-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco C9300-24UX-E 24x MultiGB UPoE RJ45 1x Expansion Module Slot Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
