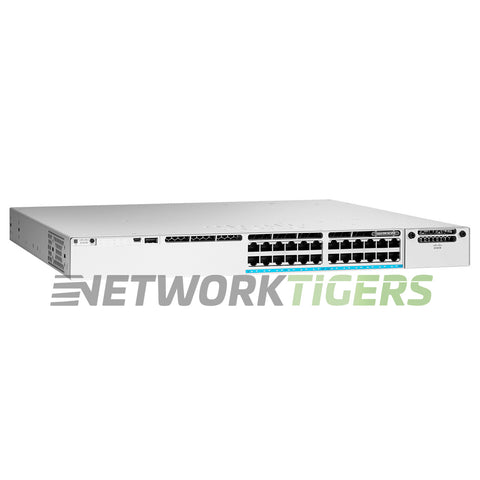

NEW Cisco C9300-24UX-E 24x MultiGB UPoE RJ-45 1x Module Slot Switch
New

NEW Cisco C9300-24UX-E 24x MultiGB UPoE RJ-45 1x Module Slot Switch

$ 6,693.99
$ 4,699.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1825
UPC: 889728035606

Overview

The Cisco C9300-24UX-E switch offers 24x MultiGB UPoE RJ-45 ports with a PoE budget of 560W, expandable to 1440W with a second PSU. With a switching capacity of 640 Gbps (1120 Gbps w/ Stacking) and a forwarding rate of 476.19 Mpps (833.33 Mpps w/ Stacking), this switch is superb in demanding corporate environments.

It has a MAC Address Table Size of up to 32,000 entries, ensuring efficient data handling and transmission in your network setup.

This versatile switch offers scalable power options while delivering robust performance capabilities such as high bandwidth throughput and low latency packet forwarding rates through its advanced hardware design. The Cisco C9300-24UX-E is ideal for businesses looking to efficiently enhance their network infrastructure without compromising reliability or operational effectiveness.

Cisco C9300-24UX-E: Catalyst 9300 24x RJ45 mGig UPOE ports.


Specifications

  • Network Ports : 24x MultiGigabit UPoE (100/1000/2.5G/5G/10) RJ-45
  • Product Family : Catalyst 9300 Series
  • Management Ports : 1x Gigabit Management RJ-45, 1x RS-232 RJ-45, 1x USB Type A
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
  • Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
  • Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
  • Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ-45)
  • Switch Version : Network Essentials
  • Fan Module Options : 3x FAN-T2 Field Replaceable Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC Included - 2x Total PSU Slots
  • Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC,
  • PoE Budget : 560W - Default PSU - (910W w/ 350W 2nd PSU, 1275W w/ 715W 2nd PSU, 1440W w/ 1100W 2nd PSU)
  • Switching Capacity : 640 Gbps (1120 Gbps with Stacking)
  • Forwarding Rate : 476.19 Mpps (833.33 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • Model Number : C9300-24UX-E
  • Part Number : C9300-24UX-E, C9300-24UX-E=, C9300-24UX-E-WS
  • Condition : New


Included

  • One (1) New Cisco C9300-24UX-E Catalyst 9300 Series 24x Multi Gigabit UPoE RJ-45 1x Expansion Module Slot Switch as described above
