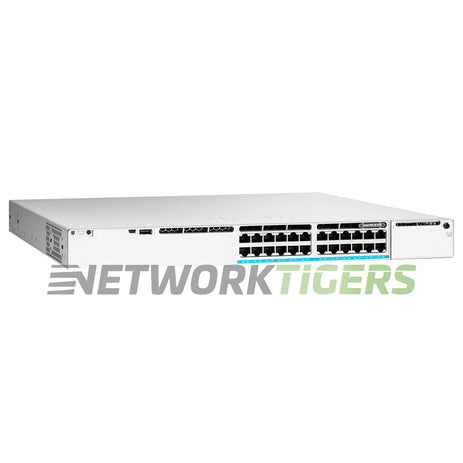

For access point closets that need Multigigabit ports and a deeper buffer, the seller refurbished Cisco Catalyst C9300-24UXB-E (Network Essentials version) offers 24 UPOE ports, a module slot for uplinks, and stacking with other higher-scale models.
- Uplinks sized for 10G ports: Fit a C9300-NM-2Q (2x 40G), C9300-NM-2Y (2x 25G/10G/1G), C9300-NM-8X (8x 10G/1G), C9300-NM-4M (4x Multigigabit), or C9300-NM-4G (4x 1G) module, or a Catalyst 3850 network module, to match the core.
- Stack rules to know: Up to eight higher-scale switches stack at 480 Gbps. Mixing with standard Catalyst 9300 or 9300X switches is not supported.
- Memory and table capacity: The switch has 8 GB of memory and 16 GB of flash, with a 64,000-entry MAC table and room for 112,000 IPv4 routes.
- Stepping up the PoE budget: A 350W second supply takes the 560W default to 910W, and a 715W supply takes it to 1,275W.
Compare: Want UPOE+ at 90W per port? The C9300X-24HX-E delivers UPOE+ on 24 Multigigabit ports. Want four fixed 10G uplinks? The C9300L-24UXG-4X-E has four 10G/1G SFP+ uplinks.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x MultiGigabit Ethernet UPoE RJ45
- Management Ports : 1x Management Console RJ45, 1x Management Console RJ45, 1x USB 3.0 SSD
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Not Included
- Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ45)
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC Included - 2x Total PSU Slots
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - Not Included
- PoE Budget : 560W - Default PSU - (910W w/ 350W 2nd PSU, 1275W w/ 715W 2nd PSU, 1440W w/ 1100W 2nd PSU)
- Switching Capacity : 640 Gbps (1120 Gbps with Stacking)
- Forwarding Rate : 476.19 Mpps (833.33 Mpps with Stacking)
- MAC Address Table Size : 64,000
- Model Number : C9300-24UXB-E
- Part Number : C9300-24UXB-E, C9300-24UXB-E=, C9300-24UXB-E-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300-24UXB-E Catalyst 9300 24x MultiGB UPoE RJ45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
