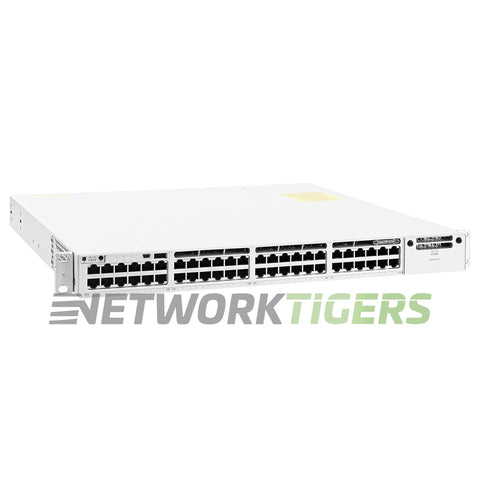

The NEW Cisco Catalyst C9300-48P-A is a 1U rack-mount switch in Cisco's Catalyst 9300 modular-uplink series, measuring 1.73 in (4.39 cm) high and 17.3 in (44.0 cm) wide. It provides 48 PoE+ RJ45 ports operating at 10/100/1000 Mbps over Category 5e or better cabling, along with one expansion module slot for 1G, 10G, 25G, or 40G uplinks.
Switching capacity is 256 Gbps, rising to 736 Gbps when stacked, with a forwarding rate of 190.48 Mpps (547.62 Mpps stacked). PoE budget is 437 watts with the default power supply and up to 1440 watts with a second supply installed, supporting IEEE 802.3af and 802.3at powered devices such as IP phones, wireless access points, and security cameras. The switch stacks with other Catalyst 9300 modular-uplink units over StackWise-480 cabling, and up to eight switches can join a single stack. It maintains a MAC address table of 32,000 entries and mounts in a standard 19-inch rack.
Cisco C9300-48P-A: Catalyst 9300 48-port PoE+, modular uplink, Network Advantage.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
- Management Ports : 1x RJ45 Console, 1x RJ45 Management, 1x USB Type B, 1x USB Type A
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ45)
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans Included
- Power Supplies Included : 1x PWR-C1-715WAC (715W AC) included - 2x Slots
- Power Supply Options : PWR-C1-715WAC or PWR-C1-1100WAC or PWR-C1-350WAC
- PoE Budget : 437W with default PSU - 787W (with 350W Secondary PS), 1152W (with 715W Secondary PS), 1440W (with 1100W Secondary PS)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48P-A
- Part Number : C9300-48P-A, C9300-48P-A=, C9300-48P-A-WS
- Condition : New
- One (1) NEW Cisco C9300-48P-A Catalyst 9300 48x 1GB PoE+ RJ45 1x Module Slot Switch Used as described above
