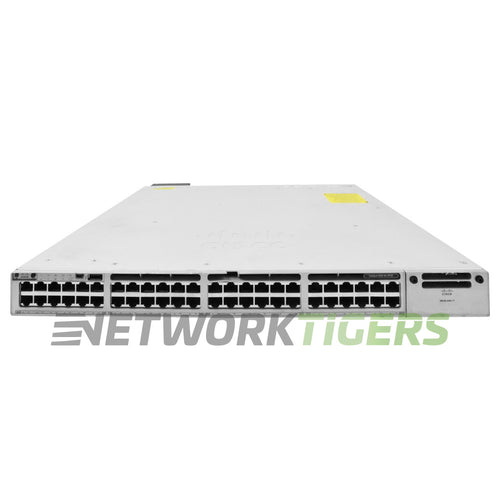

With room for 384 UPOE ports in an eight-switch stack, the seller refurbished Cisco Catalyst C9300-48U-E (Network Essentials version) delivers up to 60W per port on 48 Gigabit ports, with a module slot for uplinks.
- Stack math: 384 UPOE ports: Eight switches over 480 Gbps cables give 384 UPOE ports, with stacked switching capacity of 736 Gbps and 547.62 Mpps of forwarding.
- Inventory tags and chassis weight: An embedded RFID tag and a blue beacon LED aid asset tracking. The chassis weighs 17.03 lb (7.72 kg), and its MTBF is 227,410 hours.
- 60W on up to 30 ports: Cisco's power table calls for two 1100W supplies to deliver 60W UPOE on up to 30 of the 48 ports.
- Fit the slot to your core: Choose C9300-NM-2Y (2x 25G/10G/1G), C9300-NM-4G (4x 1G), C9300-NM-8X (8x 10G/1G), C9300-NM-2Q (2x 40G), or C9300-NM-4M (4x Multigigabit) for the uplink slot.
Compare: Don't need 60W per port? The C9300-48P-E provides PoE+ at up to 30W per port. Want fixed 10G uplinks? The C9300L-48UXG-4X-E has four 10G/1G SFP+ uplinks.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x 1 Gigabit Ethernet UPoE RJ45
- Product Family : Catalyst 9300 Series
- Management Ports : 1x Management Console - RJ45, 1x Management Console RJ45, 1x USB 3.0 SSD
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Expansion Module Slot - None Included - Sold separately
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans Included
- Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
- PoE Budget : 822W (w/ Default PSU), 1172W (w/ 350W 2nd PSU), 1537W (w/ 715W 2nd PSU), 1800W (w/ 1100W 2nd PSU)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- DRAM : 8GB
- Model Number : C9300-48U-E
- Part Number : C9300-48U-E, C9300-48U-E=, C9300-48U-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-48U-E Catalyst 9300 Series 48x 1 Gigabit UPoE RJ45 1x Expansion Module Slot Switch as described above
- One (1) Notched Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
