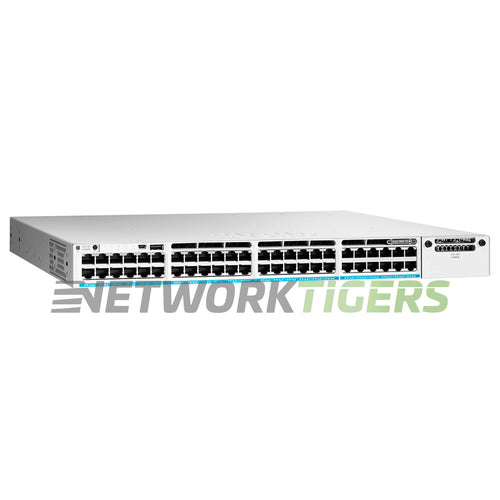

For Wi-Fi 6 closets that want 60W UPOE and fast uplinks without a module, the seller refurbished Cisco Catalyst C9300L-48UXG-4X-E (Network Essentials version) offers 48 UPOE ports and optional stacking for up to eight switches.
- 96 Multigigabit ports stacked: Eight switches give 96 Multigigabit and 288 Gigabit UPOE ports. Stacked switching capacity reaches 712 Gbps, with 529.76 Mpps of forwarding.
- Rack tag and chassis data: An embedded RFID tag and a blue beacon LED aid inventory. The chassis weighs 16.86 lb (7.65 kg), and its MTBF is 273,820 hours.
- A 715W partner supply: A 715W second supply lifts the 675W default PoE budget to 1,390W.
- Uplinks at 10G/1G: The four fixed SFP+ uplinks take LC fiber transceivers, and the 40G version is the C9300L-48UXG-2Q.
Compare: Want 40G uplinks? The C9300L-48UXG-2Q-E has two fixed 40G QSFP+ uplinks. Need modular uplinks? The C9300-48UXM-E takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 36x Gigabit Ethernet RJ45 UPOE, 12x MultiGigabit Ethernet RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB
- Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
- Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P Power Supplies Included - 2x Slots - 2nd Power Supply ordered separately.
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P - Not Included
- PoE Budget : 675W default PoE budget, up to 1775W with a second power supply added
- Switching Capacity : 392 Gbps (712 Gbps w/ Stacking)
- Forwarding Rate : 291.66 Mpps (529.76 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- Product Family : Catalyst 9300L Series
- Model Number : C9300L-48UXG-4X-E
- Part Number : C9300L-48UXG-4X-E, C9300L-48UXG-4X-E=, C9300L-48UXG-4X-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-48UXG-4X-E 48x 1GB UPoE RJ45 (12x MultiGB) 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
