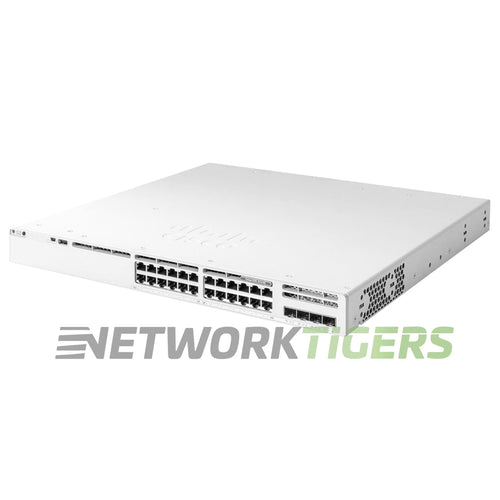

Cisco C9300L-24P-4G-A Catalyst 9300L Series 24x 1GB PoE+ RJ-45 4x 1GB SFP Switch

Cisco C9300L-24P-4G-A Catalyst 9300L Series 24x 1GB PoE+ RJ-45 4x 1GB SFP Switch

$ 2,029.99
$ 1,425.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-5258
UPC: 889728174558

Overview

The Cisco C9300L-24P-4G-A is a high-performance network switch that offers 24 Gigabit Ethernet ports with PoE+ capability and four SFP uplink interfaces. It provides a robust power budget of 505W, allowing for the simultaneous use of multiple powered devices such as IP phones and wireless access points.

With a switching capacity of 56 Gbps (which increases to an impressive 376 Gbps when stacked), this switch ensures fast and reliable data transfer across your network. The forwarding rate reaches 41.66 Mpps without stacking or can go even higher at approximately 279.76 Mpps in stack mode.

Thanks to its large MAC address table size of 32,000 entries, it supports efficient traffic management on-demand. For further efficiency, the latency levels are kept minimal.

Cisco C9300L-24P-4G-A: Catalyst 9300 24x 1Gb RJ45 PoE+ ports, 4x 1G SFP uplink ports.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45 - 802.3at (30W per port)
  • Uplink Ports : 4x 1 Gigabit Ethernet SFP
  • Management Ports : 2x USB, 1x Mini USB
  • Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
  • Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
  • Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
  • Switch Version : Network Advantage
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 3x FAN-T2 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-715WAC-P Included - 2nd Power Supply ordered separately.
  • Power Supply Options : Not Included - Options are PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P
  • PoE Budget : 505W (720W w/ 2nd PSU) - 2nd PSU allows PoE+ 802.3at (30W per port) for all 24 ports.
  • Switching Capacity : 56 Gbps (Switching Capacity with Stacking - 376 Gbps)
  • Forwarding Rate : 41.66 Mpps (Forwarding Rate with Stacking - 279.76 Mpps)
  • MAC Address Table Size : 32,000
  • Model Number : C9300L-24P-4G-A
  • Part Number : C9300L-24P-4G-A, C9300L-24P-4G-A=, C9300L-24P-4G-A-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco C9300L-24P-4G-A.

Included

  • One (1) Seller Refurbished Cisco C9300L-24P-4G-A Catalyst 9300L Series 24x 1GB PoE+ RJ-45 4x 1GB SFP Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
