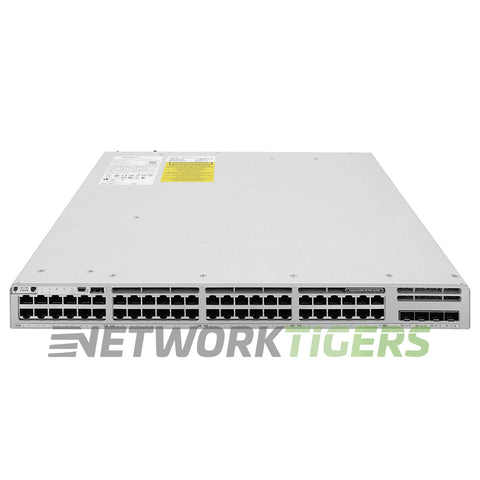

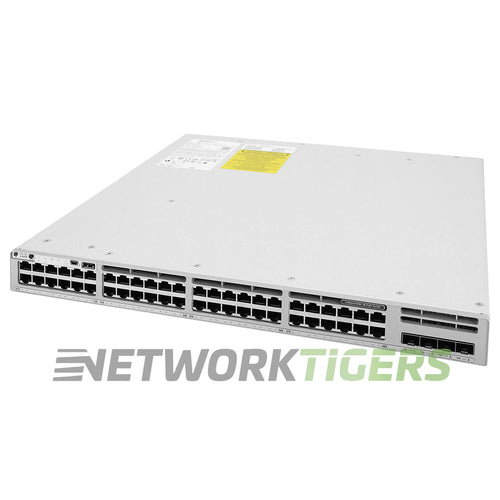

For floors that need 48 powered ports without a module slot, the seller refurbished Cisco Catalyst C9300L-48P-4G-A (Network Advantage version) offers Gigabit PoE+ ports, four fixed 1G uplinks, and optional stacking for up to eight switches.
- 384 PoE+ ports across a stack: With the optional stack kit, eight switches share 320 Gbps for up to 384 PoE+ ports. Stacked switching capacity reaches 424 Gbps, with 315.48 Mpps of forwarding.
- Budget from 505W to 1,440W: The default 715W supply provides 505W of PoE. A second 715W supply raises that to 1,220W, and an 1100W one reaches 1,440W, which is 30W on all 48 ports.
- Four 1G SFP uplinks: The four fixed 1G SFP uplinks take LC fiber transceivers or 1000BASE-T copper SFPs on Cat 5E, so there is no module slot to fill.
Compare: Want 10G uplinks? The C9300L-48P-4X-A has four 10G/1G SFP+ uplinks. Want half the ports? The C9300L-24P-4G-A has 24 PoE+ ports.

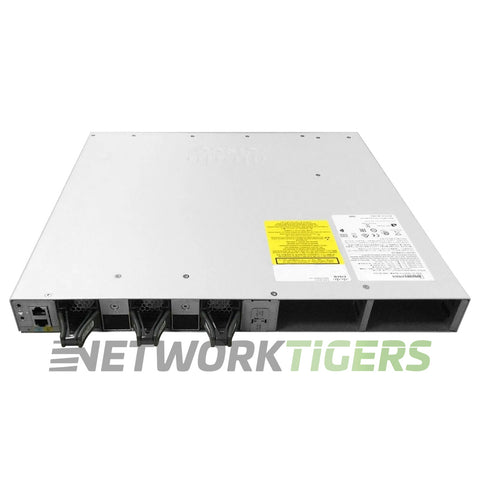

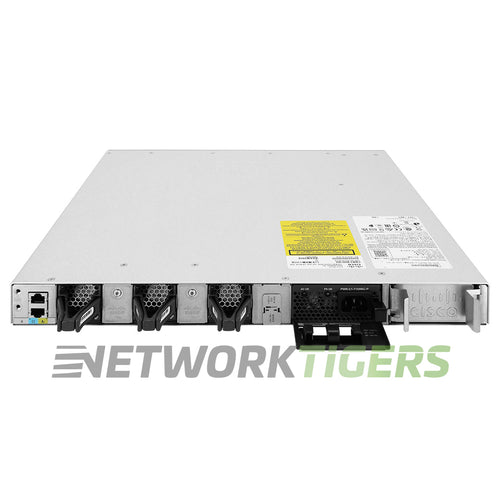

This listing ships with the switch, one AC power supply (PWR-C1-715WAC-P), one power cord, three fan modules, and a set of rack-mount brackets. See all Cisco Catalyst 9300 switches and parts.
This seller refurbished Cisco C9300L-48P-4G-A switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45 - 802.3at (30W per port)
- Uplink Ports : 4x 1GB SFP
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
- Stacking Options : Other C9300L and C9300LM SKUs with same license level (Number of Members - 8) are supported in stacking.
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 (3 fan bays)
- Power Supplies Included : 1x PWR-C1-715WAC-P (2 power supply bays)
- Power Supply Options : PWR-C1-350WAC, PWR-C1-350WAC-P, PWR-C1-715WAC, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P, PWR-C1-715WDC
- PoE Budget : 505W (855W w/ 2nd 350W PSU, 1220W w/ 2nd 715W PSU, 1440W w/ 2nd 1100W PSU)
- Switching Capacity : 104 Gbps (Switching Capacity with Stacking - 424 Gbps)
- Forwarding Rate : 77.38 Mpps (Forwarding Rate with Stacking - 315.48 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48P-4G-A
- Part Number : C9300L-48P-4G-A, C9300L-48P-4G-A=, C9300L-48P-4G-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-48P-4G-A Catalyst 9300L 48x 1GB PoE+ RJ45 4x 1GB SFP Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
