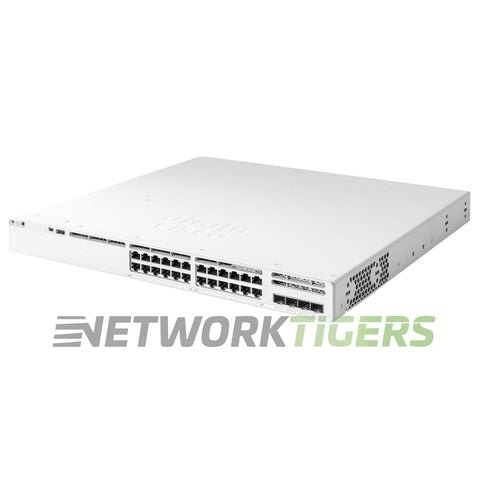

NEW Cisco C9300L-24T-4G-A 24x 1GB RJ45 4x 1GB SFP Switch
New

NEW Cisco C9300L-24T-4G-A 24x 1GB RJ45 4x 1GB SFP Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5300
UPC: 818283475091

Overview

The Cisco C9300L-24T-4G-A is a 1GB switch with excellent performance and features. It provides flexible connectivity options for various network devices with 24x 1GB RJ45 ports and 4x SFP ports. The switching capacity of this switch is impressive at 56 Gbps, ensuring smooth and reliable data transmission.

One notable feature of the C9300L-24T-4G-A is its stacking capability. It allows you to connect multiple switches to create a unified system with an enhanced switching capacity of up to 376 Gbps. Its forwarding rate stands at41.66 Mppsand can reach279.76Mppswith stacking enabled, making it suitable for high-bandwidth applications such as video streaming or large file transfers.

The MAC address table size of 32,000 ensures efficient handling of network traffic. The device also supports Power over Ethernet (PoE), directly providing power supply capabilities for compatible devices through the ethernet cable.

Cisco C9300L-24T-4G-A: Catalyst 9300 24x 1Gb RJ45 data only ports, 4x 1Gb SFP uplink ports, Network Advantage.


Specifications

  • Network Ports : 24x Gigabit Ethernet RJ45
  • Uplink Ports : 4x 1 Gigabit Ethernet SFP
  • Management Ports : 2x USB, 1x Mini USB
  • Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
  • Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
  • Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
  • Switch Version : Network Advantage
  • Fan Module Options : 3x FAN-T2 Modules Included
  • Power Supplies Included : 1x PWR-C1-350WAC-P Included - 2nd Power Supply ordered separately.
  • PoE Budget : N/A
  • Switching Capacity : 56 Gbps (Switching Capacity with Stacking - 376 Gbps)
  • Forwarding Rate : 41.66 Mpps (Forwarding Rate with Stacking - 279.76 Mpps)
  • MAC Address Table Size : 32,000
  • Model Number : C9300L-24T-4G-A
  • Part Number : C9300L-24T-4G-A, C9300L-24T-4G-A=, C9300L-24T-4G-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300L-24T-4G-A 24x 1GB RJ45 4x 1GB SFP Switch as described above
