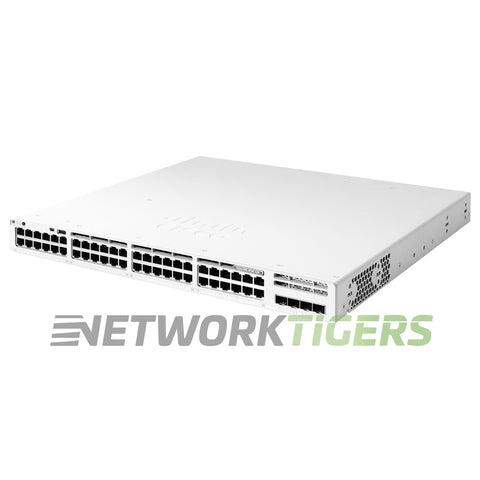

This NEW Cisco Catalyst C9300L-48T-4G-A (Network Advantage version) arrives in open box as a 48-port Gigabit RJ45 data switch for desktops, printers, and other wired endpoints, with four fixed 1G uplinks and room to stack as the site grows.
- Uplink speed by model: Uplinks are fixed, so speed comes with the model: four 1G SFP here, or four 10G/1G SFP+ on the C9300L-48T-4X.
- Cable options for stacks: The optional stack kit has two adapters and a 0.5m cable, with 1m and 3m cables also offered for stacks of up to eight.
- Memory, flash, and a USB slot: The switch has 8 GB of memory and 16 GB of flash, and its USB 3.0 slot takes an SSD up to 240 GB.
- Measured draw at 115V: No PoE is offered. Cisco's published measurements show 59.47W with no link and 82.32W at full-port traffic.
Compare: Want fewer ports? The NEW C9300L-24T-4G-A has 24 copper ports. Need a module slot? The NEW C9300-48T-A takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x 1 Gigabit Ethernet RJ45
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 2x USB, 1x Mini USB
- Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
- Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-350WAC-P Included - 2nd Power Supply ordered separately.
- Switching Capacity : 104 Gbps (Switching Capacity with Stacking - 424 Gbps)
- Forwarding Rate : 77.38 Mpps (Forwarding Rate with Stacking - 315.48 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48T-4G-A
- Part Number : C9300L-48T-4G-A, C9300L-48T-4G-A=, C9300L-48T-4G-A-WS
- Condition : New
- One (1) NEW Cisco C9300L-48T-4G-A Catalyst 9300L 48x 1GB RJ45 4x 1GB SFP Switch as described above
