Cisco C9300L-48P-4G-E 48x 1GB PoE+ (505W) RJ45 4x 1GB SFP Switch

$ 1,311.99
$ 1,248.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-5260 ASK FOR QUOTE
UPC: 889728174633

Overview

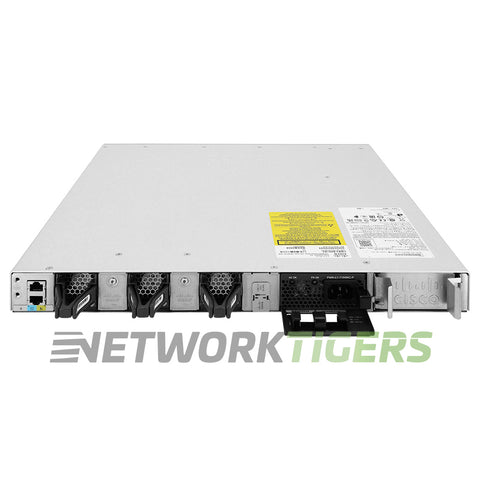

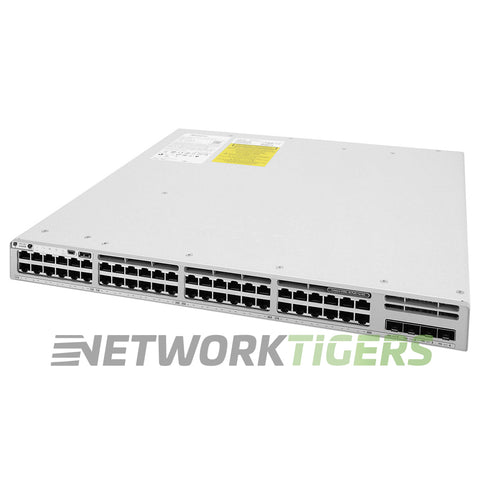

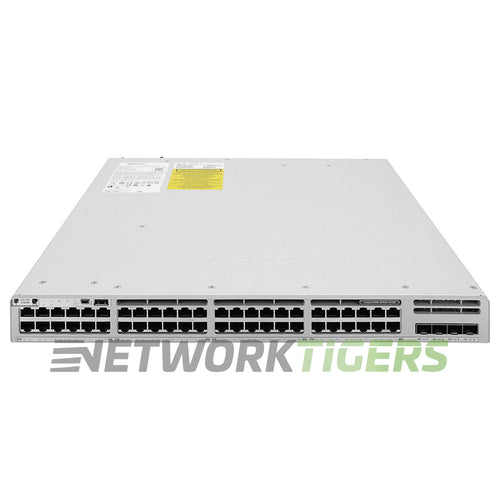

Powering up to 48 phones, access points, and cameras over Gigabit PoE+ ports, the seller refurbished Cisco Catalyst C9300L-48P-4G-E (Network Essentials version) is an access switch with four fixed 1G SFP uplinks and optional stacking.

  • PoE with a second supply: 505W of PoE comes from the default 715W supply, and a 350W second supply lifts it to 855W. A 715W one reaches 1,220W.
  • Built-in SFP uplinks: The four uplinks are 1G SFP ports, so fiber or copper SFPs plug in directly and there is no network module.
  • Stack only with 9300L peers: Up to eight switches stack at 320 Gbps, but only with other Catalyst 9300L and 9300LM switches. Modular Catalyst 9300 switches cannot join.
  • Open bay, replaceable fans: A second power supply can go in the open bay for redundancy, and the three fans (FAN-T2, N+1) are field-replaceable.

Compare: Don't need PoE? The C9300L-48T-4G-E is data-only. Want modular uplinks? The C9300-48P-E takes Catalyst 9300 network modules.

This listing ships with the switch, one AC power supply (PWR-C1-715WAC-P), one power cord, three fan modules, and a set of rack-mount brackets. See all Cisco Catalyst 9300 switches and parts.

This seller refurbished Cisco C9300L-48P-4G-E switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45 - 802.3at (30W per port)
  • Uplink Ports : 4x 1GB SFP
  • Management Ports : 2x USB, 1x Mini USB
  • Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
  • Stacking Options : Other C9300L and C9300LM SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
  • Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
  • Switch Version : Network Essentials
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 3x FAN-T2 (3 fan bays)
  • Power Supplies Included : 1x PWR-C1-715WAC-P (2 power supply bays)
  • Power Supply Options : PWR-C1-350WAC, PWR-C1-350WAC-P, PWR-C1-715WAC, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P, PWR-C1-715WDC
  • PoE Budget : 505W (855W w/ 2nd 350W PSU, 1220W w/ 2nd 715W PSU, 1440W w/ 2nd 1100W PSU)
  • Switching Capacity : 104 Gbps (Switching Capacity with Stacking - 424 Gbps)
  • Forwarding Rate : 77.38 Mpps (Forwarding Rate with Stacking - 315.48 Mpps)
  • MAC Address Table Size : 32,000
  • Model Number : C9300L-48P-4G-E
  • Part Number : C9300L-48P-4G-E, C9300L-48P-4G-E=, C9300L-48P-4G-E-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco C9300L-48P-4G-E 48x 1GB PoE+ RJ45 4x 1GB SFP Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
