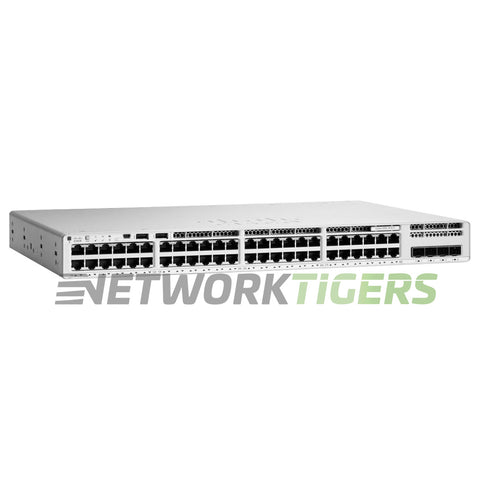

NEW Cisco C9300L-48P-4X-A 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch
New

NEW Cisco C9300L-48P-4X-A 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch

$ 3,284.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5296 ASK FOR QUOTE
UPC: 889728174640

Overview

Supplied in open box, the NEW Cisco Catalyst C9300L-48P-4X-A (Network Advantage version) gives wiring closets 48 Gigabit PoE+ ports with four fixed 10G/1G uplinks and optional stacking for up to eight switches in offices and schools.

  • SFP+ cages and fiber: The uplink cages take SFP+ transceivers with LC connectors, single-mode or multimode, and 1G SFPs also fit.
  • Cables for the stack: The optional kit has two adapters and a 0.5m cable, and 1m and 3m cables are also offered.
  • RAM, flash, and USB storage: The switch carries 8 GB of memory and 16 GB of flash, and its USB 3.0 slot takes an SSD of up to 240 GB.
  • Draw with no PoE load: Cisco's published measurements show 68.50W with no link and 94.13W at full-port traffic at 115V.

Compare: Want fewer ports? The NEW C9300L-24P-4X-A has 24 PoE+ ports. Need a module slot? The NEW C9300-48P-A takes Catalyst 9300 network modules.

What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.

This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ45 PoE+
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 2x USB, 1x Mini USB
  • Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
  • Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
  • Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
  • Switch Version : Network Advantage
  • Fan Module Options : 3x FAN-T2 Modules Included
  • Power Supplies Included : 1x PWR-C1-715WAC-P Included - 2nd Power Supply ordered separately.
  • PoE Budget : 505W (w/ Primary PSU), 720W (w/ Secondary PSU)
  • Switching Capacity : 176 Gbps (Switching Capacity with Stacking - 496 Gbps)
  • Forwarding Rate : 130.95 Mpps (Forwarding Rate with Stacking - 369.05 Mpps)
  • MAC Address Table Size : 32,000
  • Model Number : C9300L-48P-4X-A
  • Part Number : C9300L-48P-4X-A, C9300L-48P-4X-A=, C9300L-48P-4X-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300L-48P-4X-A 48x 1GB PoE+ RJ45 4x 10GB SFP+ Switch as described above
