The Cisco CW9164I-B offers Antenna Options with Spread Spectrum Method of OFDMA, supporting Frequency Bands of 2.4 GHz, 5 GHz, and 6 GHz. Its Internal antenna can handle Data Link Protocol efficiently for IoT applications. The regulatory domain includes Bluetooth Low Energy (LE) technology for seamless connectivity.
With a Maximum Data Rate suitable for Internet of Things devices and compatibility across various communication technologies such as Wi-Fi and Bluetooth LE, the Cisco CW9164I-MR provides reliable performance in diverse environments requiring wireless connections at different frequencies.

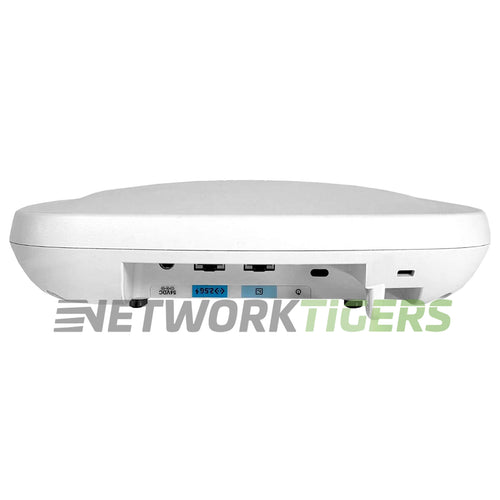

Cisco CW9164I-B: CW9164I cloud-managed 802.11ax compatible AP.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax, Wi-Fi 6 and Wi-Fi 6E compliant, 6GHz band supported.
- Managed By : On-premises via Catalyst 9800 Series controllers, physical or virtual, or cloud via Meraki dashboard
- Suggested Use : General indoor enterprise deployment, hybrid work environments, high-density and high-definition collaboration applications.
- Region : Region B (US)
- Radios : 3x, one 2.4GHz, one 5GHz, one 6GHz, all supporting uplink and downlink MU-MIMO.
- Spatial Streams per Radio : 4x streams on 5GHz and 6GHz using 4x4, 2x streams on 2.4GHz using 2x2, for 10x total combined.
- Maximum Data Rate : Up to 7.49 Gbps combined, 4x4 160MHz on 6GHz, 4x4 80MHz on 5GHz, 2x2 20MHz on 2.4GHz.
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5.1 radio for asset tracking, wayfinding, and analytics.
- PoE Standard : 802.3bt Cisco UPOE or 802.3at PoE+ for full 4x4/4x4/2x2 operation at 2.5G link speed - AIR-PWRINJ7=, AIR-PWRINJ6=, or MA-INJ-6 available separately.
- DC Power Input : Supported, 54V, using the MA-PWR-50WAC power adapter (not included)
- Uplink Ports : 1x 100M/1000M/2.5G Multigigabit Ethernet RJ-45.
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 at 4.5W.
- Antenna Type : Integrated internal antennas, omnidirectional in azimuth, 2.4GHz at 3dBi, 5GHz at 5dBi, 6GHz at 4dBi peak gain.
- Mounting Options : AIR-AP-BRACKET-1 (flush ceiling), AIR-AP-BRACKET-2 (universal, electrical box, NEMA, wall), AIR-AP-T-RAIL-R or AIR-AP-T-RAIL-F (T-rail drop ceiling). BRACKET-3 not compatible.
- Mounts Included : AIR-AP-T-RAIL-R (adjustable ceiling-rail clip) and AIR-AP-BRACKET-1= both ship as default mounting hardware
- Model Number : CW9164I-B
- Part Number : CW9164I-B
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco CW9164I-B Wi-Fi 6E 802.11ax US Internal Omni Directional Antenna WAP as described above
- One (1) Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
