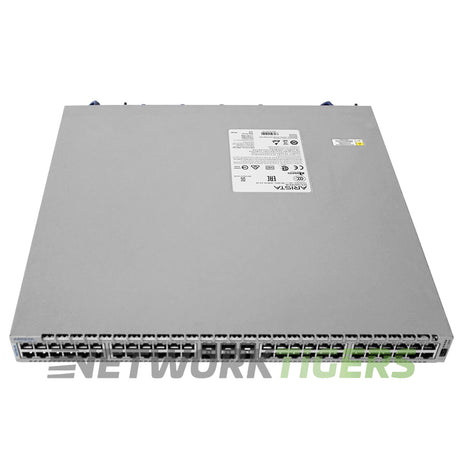

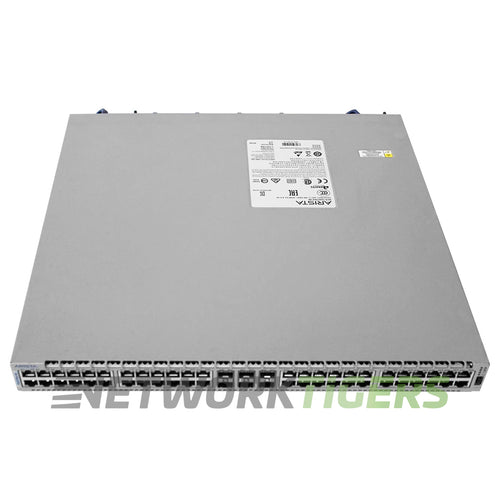

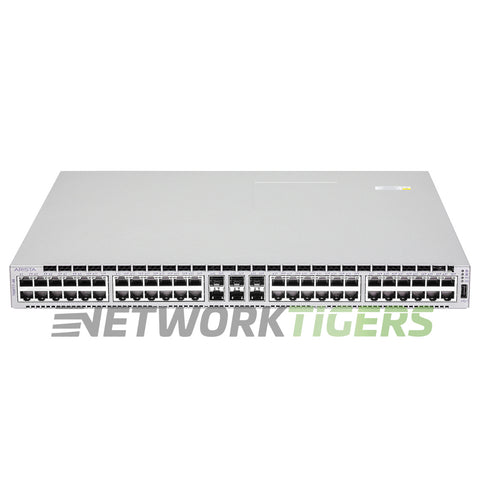

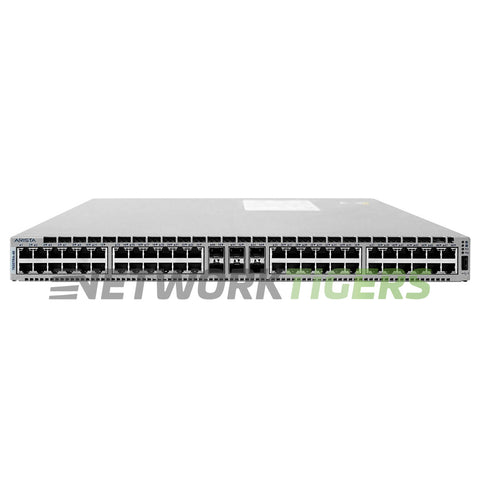

The Arista DCS-7020TR-48-R is a 1RU switch with 48 RJ45 ports at 100/1000 Mb/s and six SFP+ ports at 1GB or 10GB. Its 3 GB packet buffer gives congested ports room to absorb bursts from storage and backup traffic instead of dropping frames.
Arista rates it at 216 Gbps and 162 Mpps, with latency from 3.8 microseconds and a 256K MAC table. The control plane runs a quad-core x86 CPU with 8 GB DRAM and 4 GB flash, managed through a 100/1000 port, an RJ45 serial console and two USB ports.

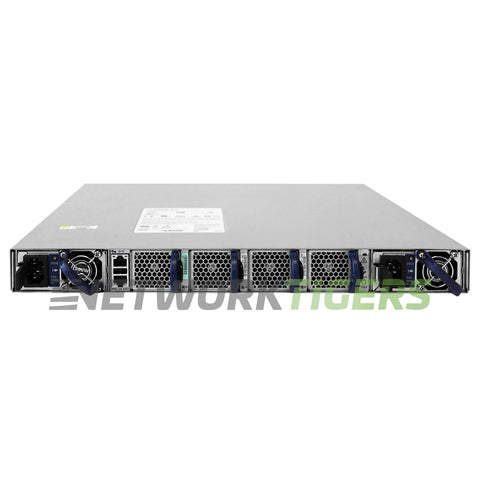

Two hot-swappable 500W supplies run 1+1 redundant, and four hot-swappable FAN-7000-R modules provide N+1 cooling. Airflow is back-to-front (port-side exhaust), so the port side faces the hot aisle. Keep every fan and supply in the chassis on the same airflow direction, and use PWR-500AC-R as the matching AC spare.
This listing ships with the switch, two AC power supplies, four fan modules, two power cords and one set of rack mount brackets. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately. Transceivers are not included.
If your rack needs port-side intake, see the DCS-7020TR-48-F switch. A new open box DCS-7020TR-48-R is also listed, and the PWR-500AC-R power supply is available as a spare.
This seller refurbished Arista DCS-7020TR-48-R switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet RJ45 (100/1000)
- Uplink Ports : 6x 1/10GB SFP+
- Management Ports : 1x 100/1000 mgmt, 1x RS-232 console (RJ45), 2x USB
- VLAN ID's : 4096
- CPU : Multi-core x86
- Packet Buffer : 3GB
- AirFlow Direction : back-to-front (port-side exhaust)
- Fan Module Options : FAN-7000-R
- Power Supplies Included : 2x PWR-500AC-R (2 power supply bays)
- Power Supply Options : PWR-500AC-R (500W AC), PWR-500-DC-R (500W DC)
- PoE Budget : None
- Switching Capacity : 216 Gbps
- Forwarding Rate : 162 Mpps
- MAC Address Table Size : 256,000
- Latency : from 3.8 microseconds
- DRAM and Flash : 8 GB DRAM, 4 GB flash
- Model Number : DCS-7020TR-48-R
- Part Number : DCS-7020TR-48-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7020TR-48-R 48x 1GB RJ45 6x 10GB SFP+ Back-to-Front Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
