NEW Arista DCS-7020TR-48-R 48x 1GB RJ45 6x 10GB SFP+ B-F Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3607

Overview

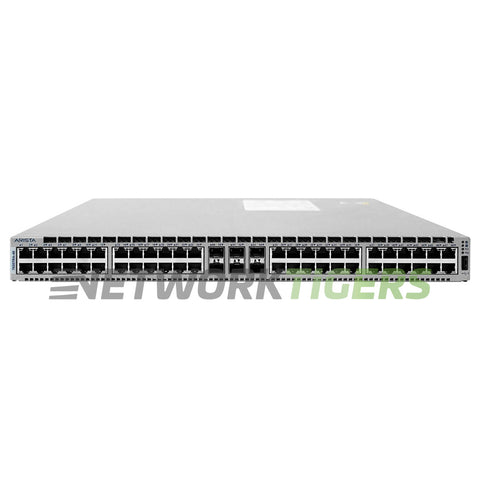

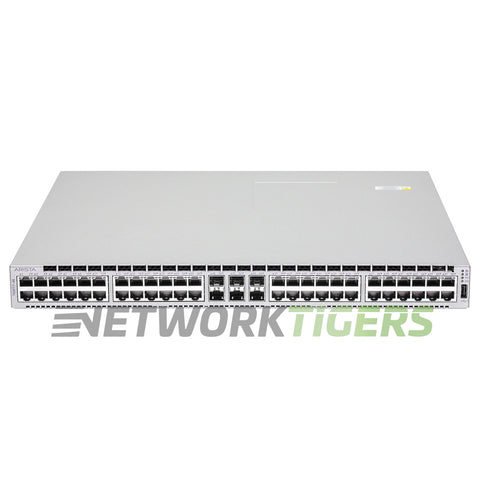

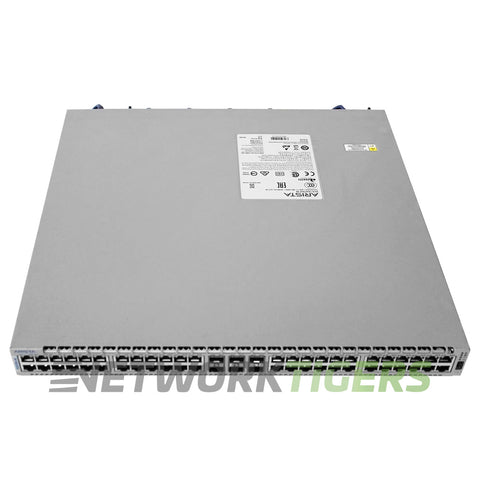

The Arista DCS-7020TR-48-R is a 1RU switch with 48 RJ45 ports at 100/1000 Mb/s and six SFP+ ports at 1GB or 10GB. Its 3 GB packet buffer gives congested ports room to absorb bursts from storage and backup traffic instead of dropping frames.

Arista rates it at 216 Gbps and 162 Mpps, with latency from 3.8 microseconds and a 256K MAC table. The control plane runs a quad-core x86 CPU with 8 GB DRAM and 4 GB flash, managed through a 100/1000 port, an RJ45 serial console and two USB ports.

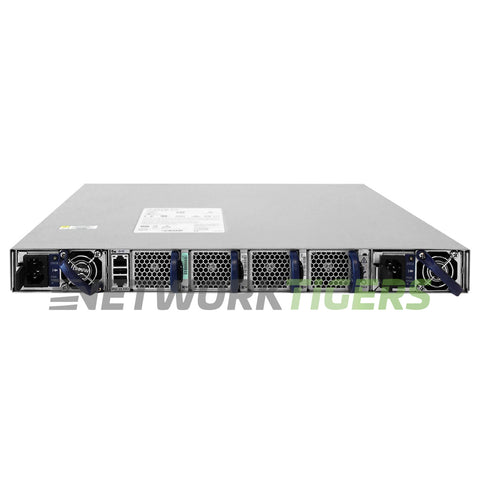

Two hot-swappable 500W supplies run 1+1 redundant, and four hot-swappable FAN-7000-R modules provide N+1 cooling. Airflow is back-to-front (port-side exhaust), so the port side faces the hot aisle. Keep every fan and supply in the chassis on the same airflow direction, and use PWR-500AC-R as the matching AC spare.

This new open box listing ships with the switch, configured by Arista with two 500W AC power supplies and four fans. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately.

If your rack needs port-side intake, see the new DCS-7020TR-48-F switch. A seller refurbished DCS-7020TR-48-R is also listed, and the PWR-500AC-R power supply is available as a spare.

This Arista DCS-7020TR-48-R switch is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ45 (100/1000)
  • Uplink Ports : 6x 1/10GB SFP+
  • Management Ports : 1x 100/1000 mgmt, 1x RS-232 console (RJ45), 2x USB
  • VLAN ID's : 4096
  • CPU : Multi-core x86
  • Packet Buffer : 3GB
  • Switch Version : Arista EOS
  • AirFlow Direction : back-to-front (port-side exhaust)
  • Fan Module Options : FAN-7000-R
  • Power Supplies Included : 2x PWR-500AC-R (2 power supply bays)
  • Power Supply Options : PWR-500AC-R (500W AC), PWR-500-DC-R (500W DC)
  • PoE Budget : None
  • Switching Capacity : 216 Gbps
  • Forwarding Rate : 162 Mpps
  • MAC Address Table Size : 256,000
  • Latency : from 3.8 microseconds
  • DRAM and Flash : 8 GB DRAM, 4 GB flash
  • Model Number : DCS-7020TR-48-R
  • Part Number : DCS-7020TR-48-R
  • Condition : New


Included

  • One (1) NEW Arista DCS-7020TR-48-R 48x 1GB RJ45 6x 10GB SFP+ B-F Airflow Switch as described above
