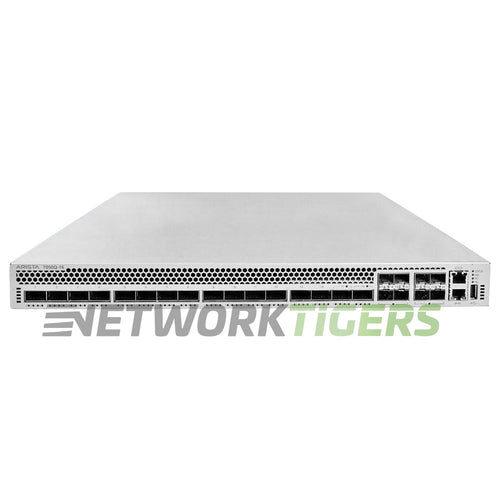

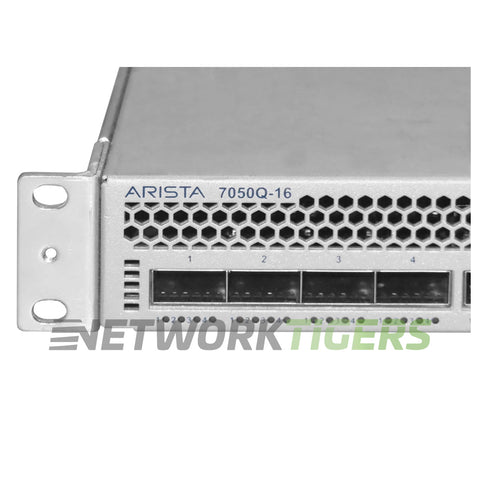

The Arista DCS-7050Q-16-R is a 1RU 40GbE switch from the original 7050 series with 16 QSFP+ ports and 8 SFP+ ports. The SFP+ ports share bandwidth with 2 of the QSFP+ ports, and with breakout the switch supports up to 64 10GbE ports for compact 40GbE aggregation.
Arista rates it at 1.28 Tbps and 960 Mpps. Latency is 800 to 850 ns on QSFP+ ports and 800 to 1150 ns on SFP+ ports, and a 9MB shared buffer uses Dynamic Buffer Allocation. A dual-core x86 CPU with 4GB of DRAM and 2GB of flash runs EOS and holds 128,000 MAC entries.
This is the -R version with back-to-front (port-side exhaust) airflow, so the port side faces the hot aisle. Its four FAN-7000-R fans run N+1 and its two PWR-460AC-R power supplies run 1+1, so replacement fans and supplies should be the -R parts for this airflow. BGP and OSPF need the Arista Enhanced L3 license (LIC-FIX-2-E), sold separately.
This listing ships with two AC power supplies, four fan modules, one power cord and a set of rack mount brackets, as shown in Item Includes. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately.
Need port-side intake instead? The DCS-7050Q-16-F front-to-back version is the same switch with the opposite airflow. A new open box DCS-7050Q-16-R is also listed, and a spare PWR-460AC-R power supply matches this airflow.
This seller refurbished Arista DCS-7050Q-16-R switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 16x 40GB QSFP+, 8x 10GB SFP+
- Uplink Ports : 8x SFP+ (shared with 2 QSFP+)
- Management Ports : 1x 100/1000 Ethernet, 1x RS-232 console (RJ45), 1x USB
- SFP Modules : None Included.
- VLAN ID's : 4096
- CPU : Dual-core x86
- Switch Version : Arista EOS
- AirFlow Direction : Back-to-front (port-side exhaust)
- Fan Module Options : FAN-7000-R
- Power Supplies Included : 2x PWR-460AC-R (2 power supply bays)
- Power Supply Options : PWR-460AC-R, PWR-460DC-R
- PoE Budget : None
- Switching Capacity : 1.28 Tbps
- Forwarding Rate : 960 Mpps
- MAC Address Table Size : 128,000
- Latency : 800 to 850 ns QSFP+, 800 to 1150 ns SFP+
- DRAM and Flash : 4 GB DRAM, 2 GB flash
- Model Number : DCS-7050Q-16-R
- Part Number : DCS-7050Q-16-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7050Q-16-R 16x 40GB QSFP+ 8x 10GB SFP+ Back-to-Front Airflow Switch as described above
- One (1) Power Cord Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
