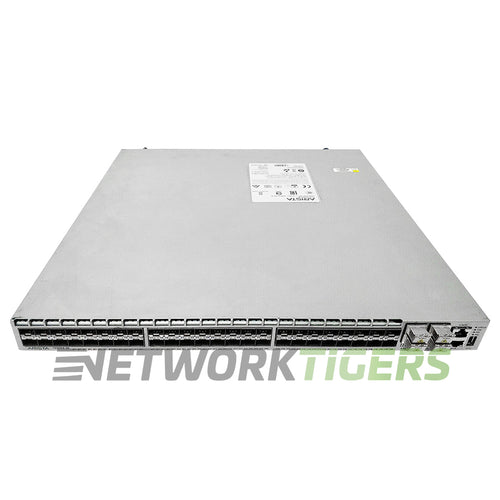

Arista DCS-7050SX-96-R 48x 10GB SFP+ 4x MXP Back-to-Front Airflow Switch

Arista DCS-7050SX-96-R 48x 10GB SFP+ 4x MXP Back-to-Front Airflow Switch

$ 705.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-7463 ASK FOR QUOTE

Overview

The Arista DCS-7050SX-96-R is a 1RU 7050X switch with 48 SFP+ ports that run at 1GB or 10GB, plus four MXP ports. Each MXP port runs as three 40GB ports or twelve 10GB ports, so the switch scales to 96 10GB ports or 12 40GB ports in total.

Arista rates it at 1.92 Tbps and 1,440 Mpps, with 550 ns latency and a 12 MB packet buffer shared through dynamic buffer allocation. The MAC table holds 32,000 entries in base mode and 288,000 in UFT mode. A quad-core x86 CPU runs with 4 GB of memory and 4 GB of flash, and typical and maximum draw are 159W and 290W.

This is the back-to-front (port-side exhaust) version, so the ports face the hot aisle. Two hot-swap power supplies run 1+1 and four hot-swap fans run N+1; matching spares are the PWR-500AC-R or PWR-500-DC-R supply and the FAN-7000-R fan. Routing protocols such as BGP and OSPF need the LIC-FIX-2-E Enhanced L3 license, sold separately.

This listing ships with two AC power supplies, four fan modules, two power cords and one set of rack mount brackets; transceivers are not included. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately.

If the rack runs the other way, the DCS-7050SX-96-F front-to-back switch is the matching model. A 4-post cabinet takes the KIT-4POST-NT 4-post rail kit, and a new DCS-7050SX-96-R is also listed.

This seller refurbished Arista DCS-7050SX-96-R switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 10GB SFP+ (1/10GB), 4x MXP (12x 40GB or 48x 10GB)
  • Uplink Ports : 4x MXP (each 3x 40GB or 12x 10GB)
  • Management Ports : 1x 10/100/1000 Ethernet, 1x RS-232 console (RJ45), 1x USB
  • CPU : Quad-Core x86
  • VLAN ID's : 4096
  • Packet Buffer : 12MB
  • AirFlow Direction : Back-to-front (port-side exhaust)
  • Fan Module Options : FAN-7000-R
  • Power Supplies Included : 2x PWR-500AC-R (2 power supply bays)
  • Power Supply Options : PWR-500AC-R, PWR-500-DC-R
  • PoE Budget : None
  • Switching Capacity : 1.92 Tbps
  • Forwarding Rate : 1.44 Bpps
  • MAC Address Table Size : 32,000 (288,000 in UFT mode)
  • Latency : 550 ns
  • DRAM and Flash : 4 GB DRAM, 4 GB flash
  • Model Number : DCS-7050SX-96-R
  • Part Number : DCS-7050SX-96-R
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7050SX-96-R 48x 10GB SFP+ 4x MXP Back-to-Front Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
