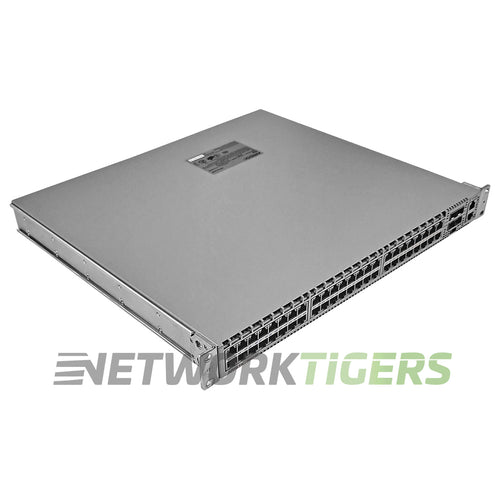

Arista DCS-7050T-52-F 48x 10GB RJ45 Copper 4x 10GB SFP+ F-B Airflow Switch

$ 343.99
$ 299.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-2240 ASK FOR QUOTE

Overview

The Arista DCS-7050T-52-F is a 1RU switch from the original 7050 series with 48 RJ45 ports at 1 or 10 Gigabit Ethernet (10GBASE-T) and four 10GB SFP+ uplinks. It suits racks of servers with onboard 10GBASE-T, cabled over standard twisted pair instead of optics on the access side.

Throughput is 1.04 Tbps at 780 Mpps. Latency is 3.3 microseconds on the RJ45 ports and 800 to 1150 ns on the SFP+ uplinks, and the 9 MB packet buffer is shared through dynamic buffer allocation. The MAC table holds 128,000 entries. A dual-core x86 CPU runs with 4 GB of memory and 2 GB of flash, and typical and maximum draw are 301W and 395W.

This is the front-to-back (port-side intake) version, so the ports face the cold aisle. Two hot-swap power supplies run 1+1 and four hot-swap fans run N+1; matching spares are the PWR-460AC-F or PWR-460DC-F supply and the FAN-7000-F fan. Routing protocols such as BGP and OSPF need the LIC-FIX-2-E Enhanced L3 license, sold separately.

This listing ships with two AC power supplies, four fan modules, one power cord and one set of rack mount brackets; transceivers are not included. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately.

If the rack runs the other way, the DCS-7050T-52-R back-to-front switch is the matching model. For 40GB QSFP+ uplinks, see the DCS-7050T-64-F switch, and a new DCS-7050T-52-F is also listed.

This seller refurbished Arista DCS-7050T-52-F switch is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet RJ45 (1/10GBASE-T), 4x 10GB SFP+
  • Uplink Ports : 4x 10GB SFP+
  • Management Ports : 1x 100/1000 Ethernet, 1x RS-232 console (RJ45), 1x USB
  • CPU : Dual-core x86
  • Packet Buffer : 9MB
  • VLAN ID's : 4096
  • AirFlow Direction : Front-to-back (port-side intake)
  • Fan Module Options : FAN-7000-F
  • Power Supplies Included : 2x PWR-460AC-F (2 power supply bays)
  • Power Supply Options : PWR-460AC-F, PWR-460DC-F
  • PoE Budget : None
  • Switching Capacity : 1.04 Tbps
  • Forwarding Rate : 780 Mpps
  • MAC Address Table Size : 128,000
  • Latency : 3.3 microseconds RJ45, 800 to 1150 ns SFP+
  • DRAM and Flash : 4 GB DRAM, 2 GB flash
  • Model Number : DCS-7050T-52-F
  • Part Number : DCS-7050T-52-F
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Arista DCS-7050T-52-F 48x 10GB Copper 4x 10GB SFP+ Front-to-Back Airflow Switch as described above
  • One (1) Power Cord Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
