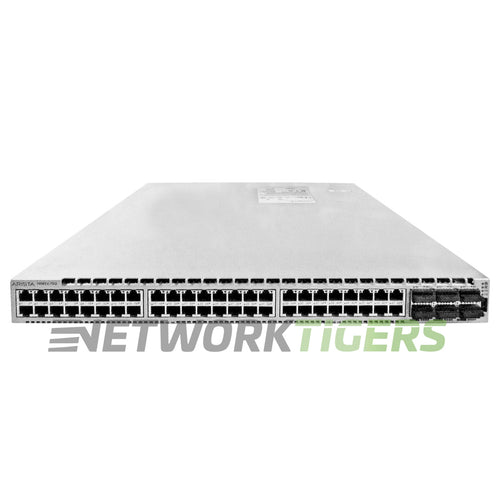

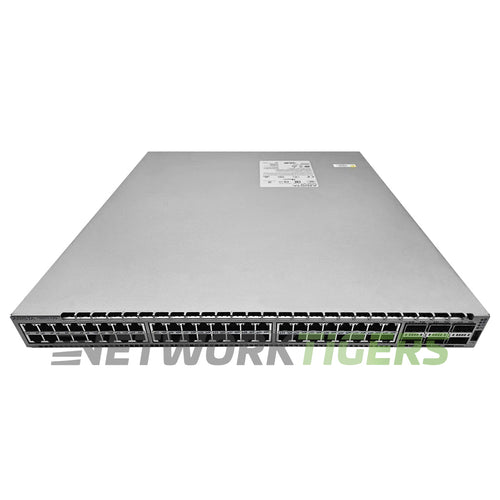

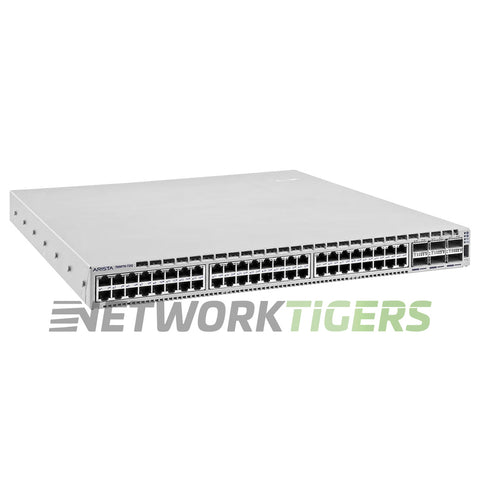

The Arista DCS-7050TX-72Q-R is a 1RU 7050TX-series switch with 48 RJ45 copper ports that run 100 Mb, 1 Gigabit or 10 Gigabit Ethernet (10GBASE-T) and six 40GB QSFP+ uplinks, two more uplinks than the 7050TX-64. Arista rates it at 1.44 Tbps and 1080 Mpps, with 3 microseconds of RJ45-to-uplink latency and a 12 MB dynamically allocated packet buffer. With QSFP+ to 4x SFP+ breakout cables it reaches 72 10GB ports.

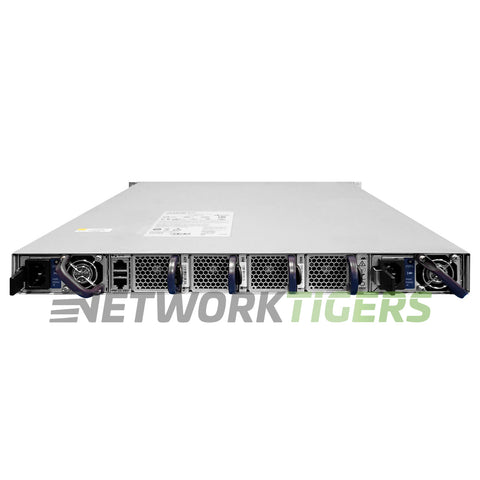

This unit has back-to-front (port-side exhaust) airflow, so the port side faces the hot aisle. It holds two hot-swap power supplies in 1+1 redundancy and four hot-swap FAN-7000-R fan modules in N+1; spares come in -F and -R versions, so order -R parts. Arista lists 340W typical and 430W maximum power draw, 4 GB of DRAM, 4 GB of flash, no SSD option, two USB ports and EOS 4.15.4 as the minimum release.
This seller refurbished listing ships with two AC power supplies, four fan modules, two power cords and one set of rack mount brackets; optics are not included. Arista switches from NetworkTigers ship with 2-post rack ears only, and 4-post rails are quoted separately.
If your rack runs the other way, the DCS-7050TX-72Q-F front-to-back airflow switch is the port-side intake version. A new open box DCS-7050TX-72Q-R is also listed.
This seller refurbished Arista DCS-7050TX-72Q-R switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 10 Gigabit Ethernet RJ45 (10GBASE-T), 6x 40GB QSFP+
- Uplink Ports : 6x 40GB QSFP+
- Management Ports : 1x 10/100/1000 Ethernet, 1x RS-232 console (RJ45), 2x USB
- CPU : Quad-Core x86
- VLAN ID's : 4096
- Packet Buffer : 12MB
- AirFlow Direction : Back-to-front (port-side exhaust)
- Fan Module Options : FAN-7000-R
- Power Supplies Included : 2x PWR-500AC-R (2 power supply bays)
- Power Supply Options : PWR-500AC-R, PWR-500-DC-R
- PoE Budget : None
- Switching Capacity : 1.44 Tbps
- Forwarding Rate : 1080 Mpps
- MAC Address Table Size : 32,000
- Latency : 3 microseconds
- DRAM and Flash : 4 GB DRAM, 4 GB flash
- Model Number : DCS-7050TX-72Q-R
- Part Number : DCS-7050TX-72Q-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7050TX-72Q-R 48x 10GB Copper 6x 40GB QSFP+ Back-to-Front Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
