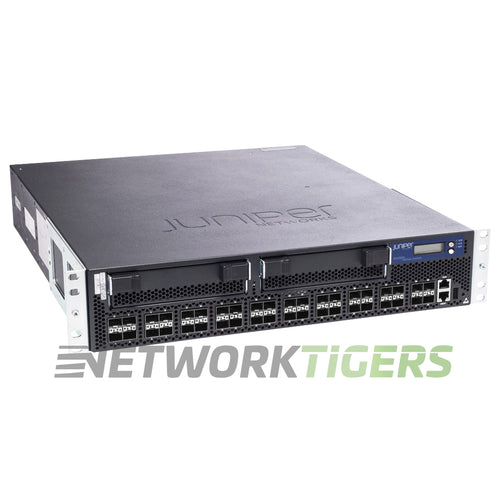

The Juniper EX4500-40F-BF-C puts 40 GbE/10GbE SFP/SFP+ ports into a 2U chassis whose cooling runs back-to-front. Pick this airflow when the rack layout calls for the opposite of the common front-to-back build. The -C designation marks the CEE-enabled version with Data Center Bridging support and eight PFC (802.1Qbb) queues.
Per the Juniper data sheet the switch handles 480 Gbps and 714 Mpps, and its hardware MAC table tops out at 32,000 addresses. Two empty uplink module slots each take an EX4500-UM-4XSFP for four more 10GB SFP+ ports. Stacking requires the separately sold EX4500-VC1-128G module, which joins up to 10 switches as one Virtual Chassis.
What ships: the switch, one AC power supply with power cord, one fan module and one set of rack mount brackets. A second 1200 W supply slot is open for redundancy. Transceivers and network modules are not included.
Running the other airflow direction? The EX4500-40F-FB-C front-to-back build is the mirror image. The EX4500-40F-VC1-BF keeps back-to-front cooling with the stacking module installed, or add the EX4500-VC1-128G Virtual Chassis module yourself.
This seller refurbished Juniper EX4500-40F-BF-C switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 40x 10GB SFP+
- Management Ports : 1x RJ45 Serial Console, 1x Gigabit Management RJ45, 1x USB port
- Stacking Ports : None included (EX4500-VC1-128G Virtual Chassis module sold separately)
- Stacking Cable Options : EX-CBL-VCP-50CM, EX-CBL-VCP-1M, EX-CBL-VCP-3M, EX-CBL-VCP-5M
- Module Slots : 2x uplink module slots (none included)
- Module Options : EX4500-UM-4XSFP
- AirFlow Direction : Back-to-front
- Fan Module Options : 1x EX4500-FANTRAY-BF Fan Tray
- Power Supplies Included : 1x EX4500-PWR1-AC-BF (2 power supply bays)
- Power Supply Options : EX4500-PWR1-AC-BF
- Switching Capacity : 480 Gbps
- Forwarding Rate : 714 Mpps
- MAC Address Table Size : 32,000
- Model Number : EX4500-40F-BF-C
- Part Number : EX4500-40F-BF-C
- Condition : Seller refurbished
- One (1) Seller Refurbished Juniper EX4500-40F-BF-C 40x 10GB SFP+ Back-to-Front Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
